Ignition Coil Module Replacement
REMOVAL PROCEDURE 1.
Disconnect the

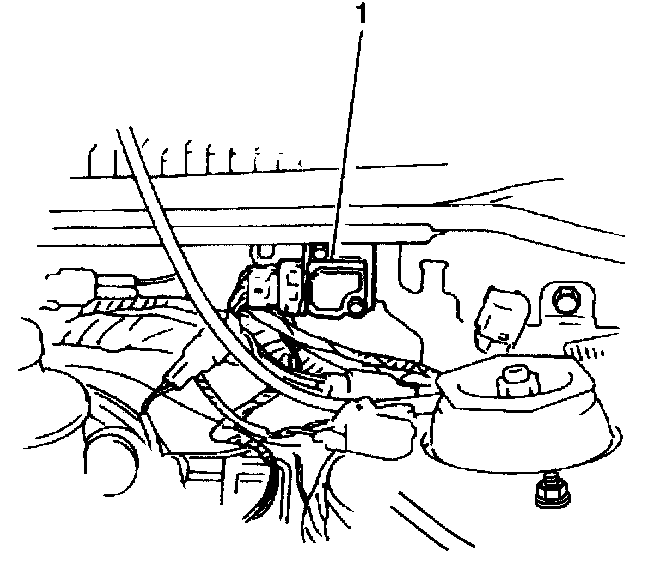

ignition control module (igniter) (1) electrical connector.
2.
Remove two screws and the
ignition control module (igniter) from the mounting bracket.
INSTALLATION PROCEDURE 1.
Install the
ignition control module (igniter) (1) to the mounting bracket. Secure with the 2 screws.
2.
Connect the
ignition control module (igniter) electrical connector.
