Engine

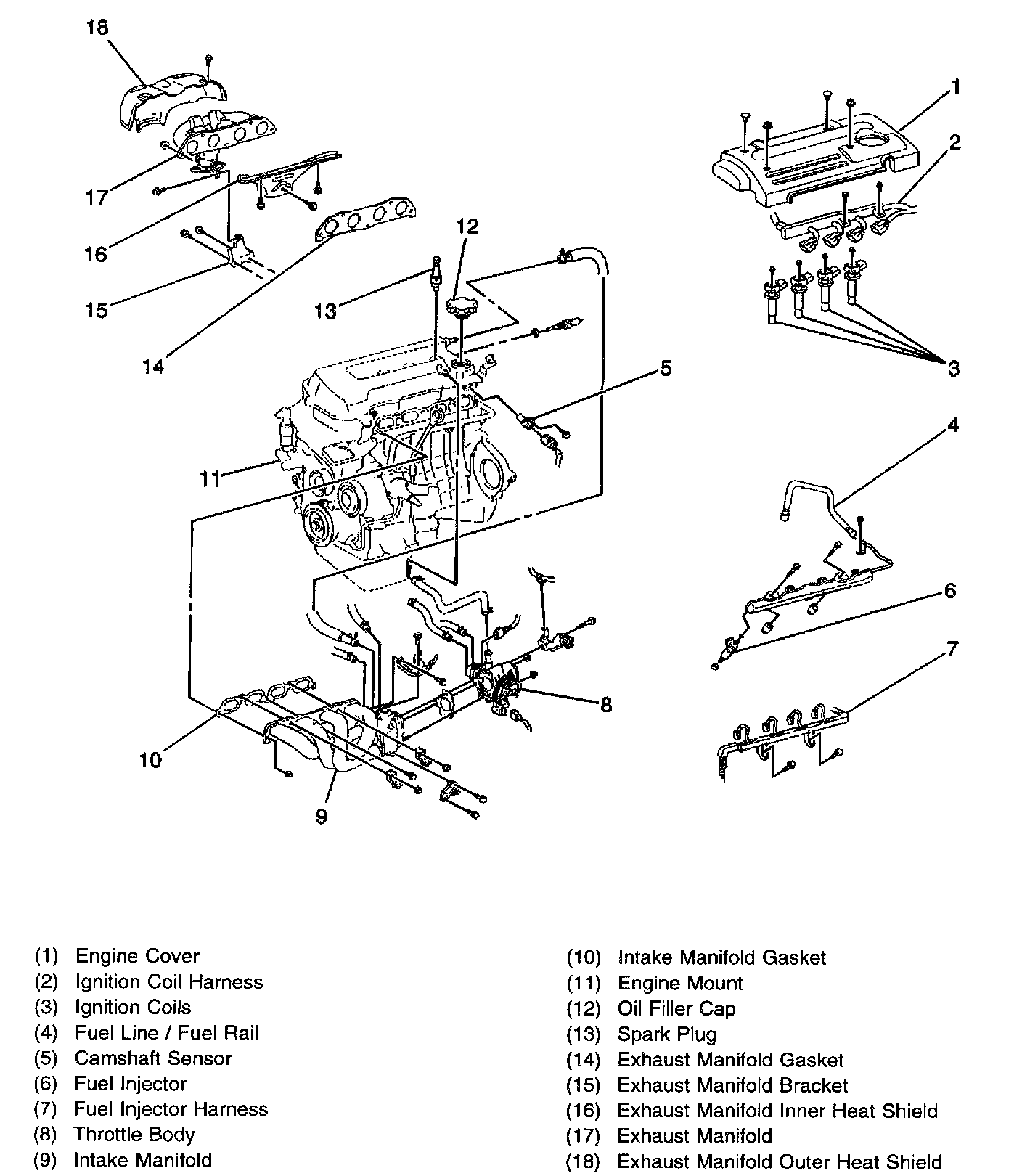

Intake and Exhaust Manifold Components

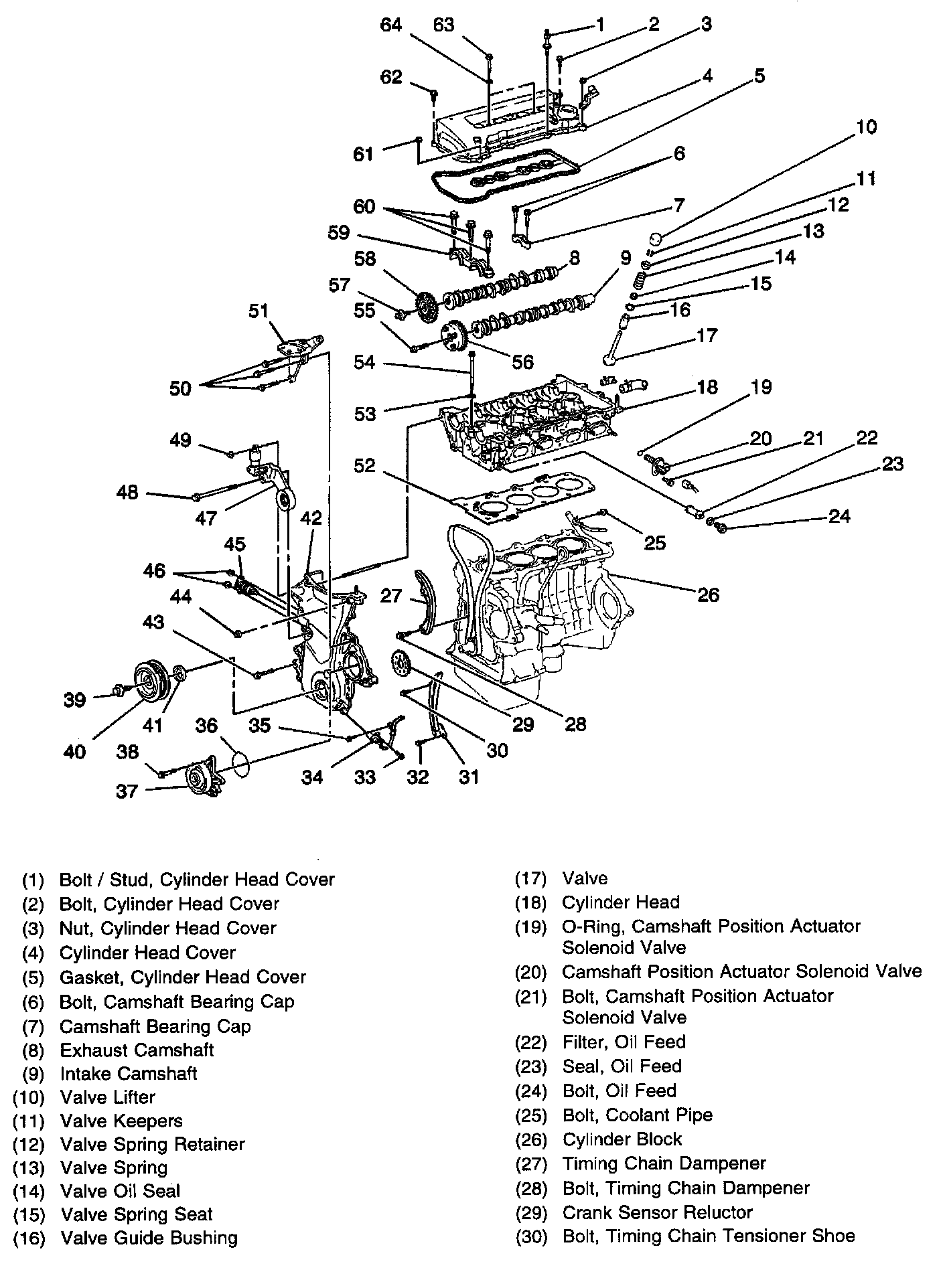

Cylinder Head and Components

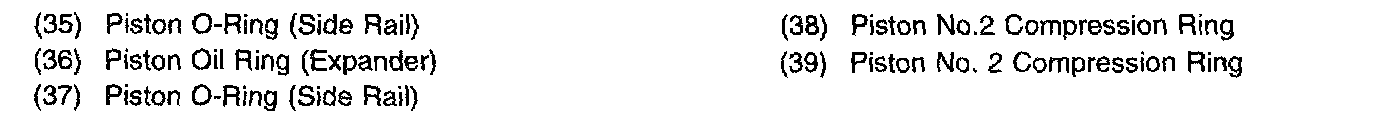

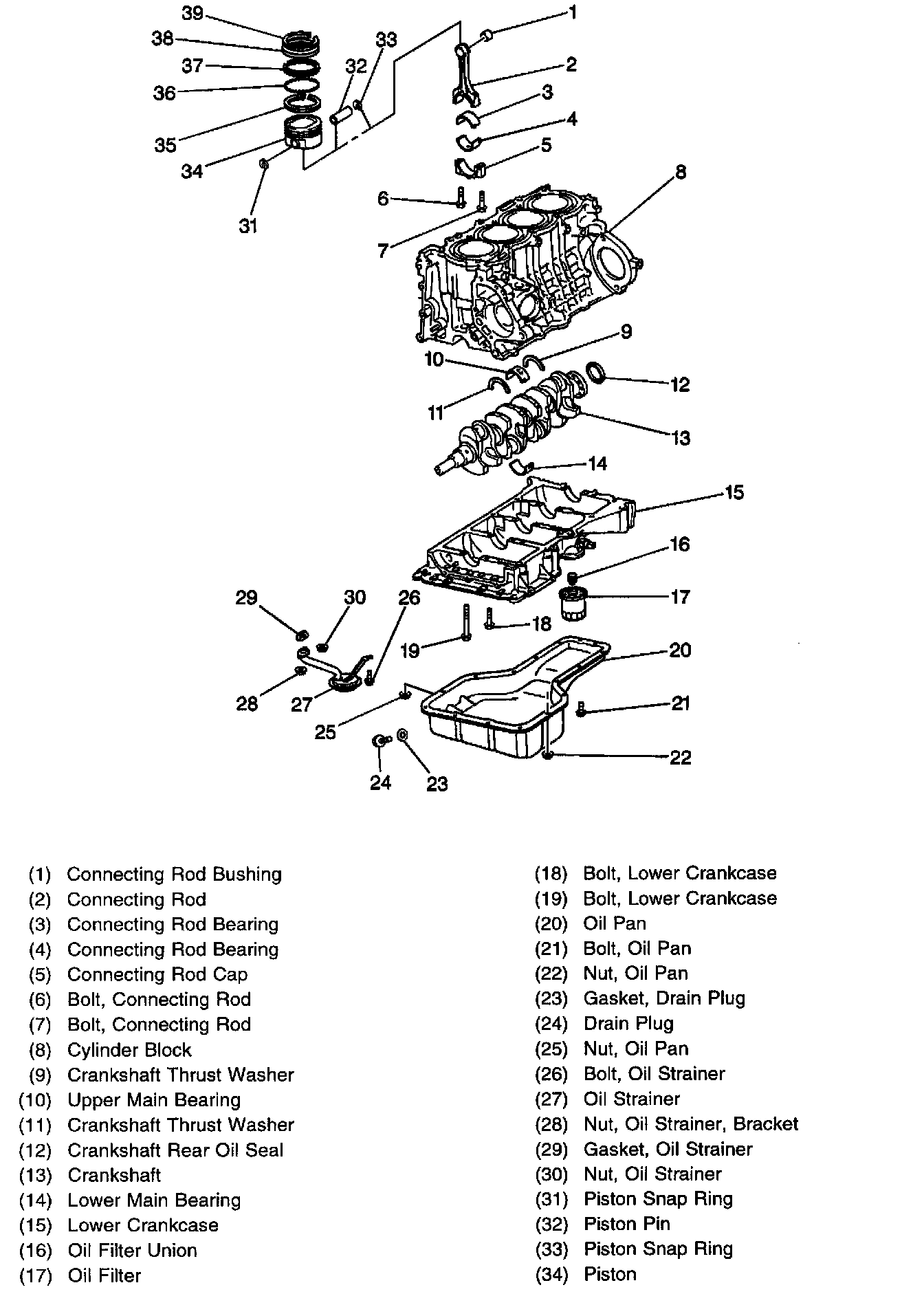

Cylinder Block, Crankshaft, Connecting Rod and Piston Components

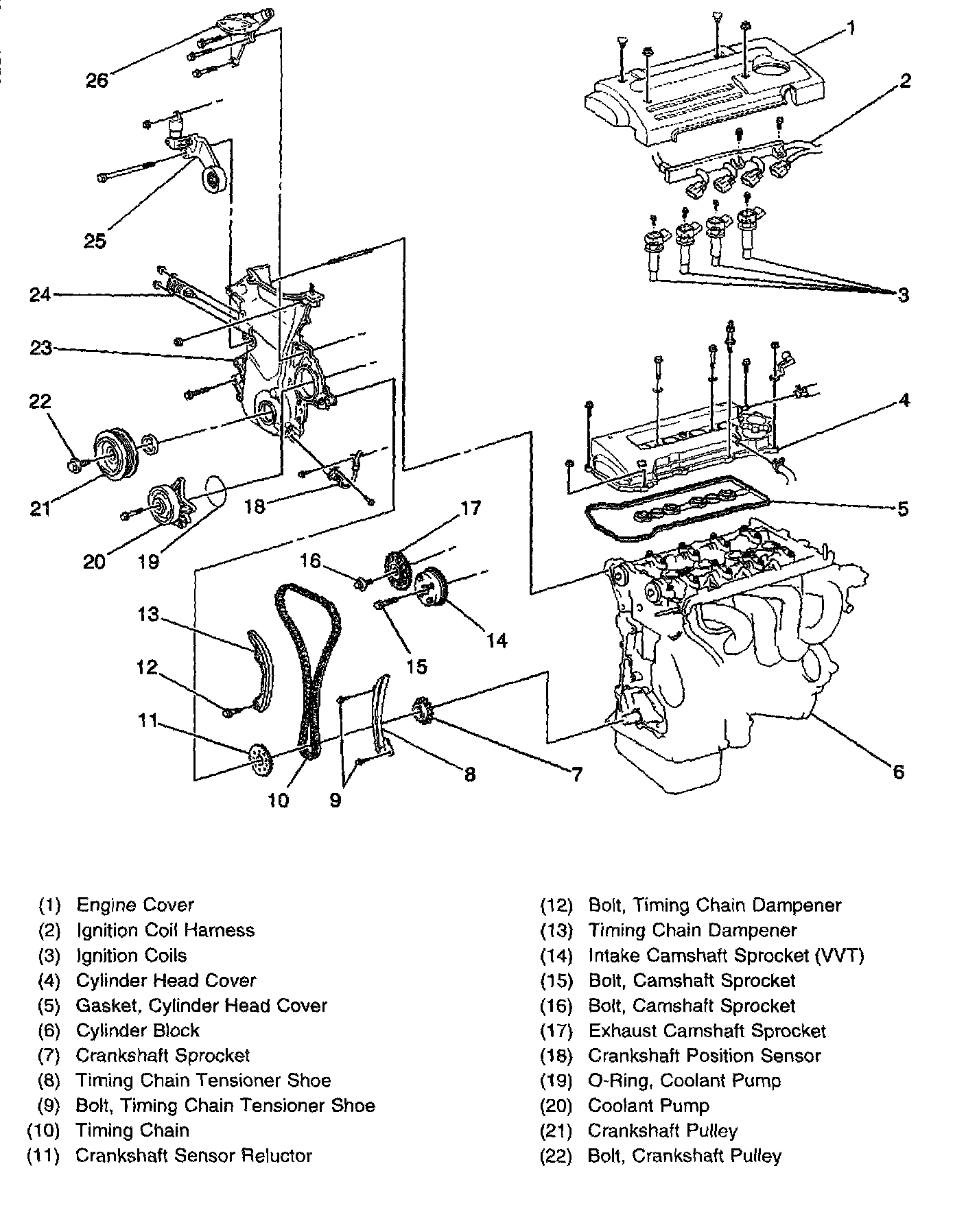

Timing Chain and Housing Components

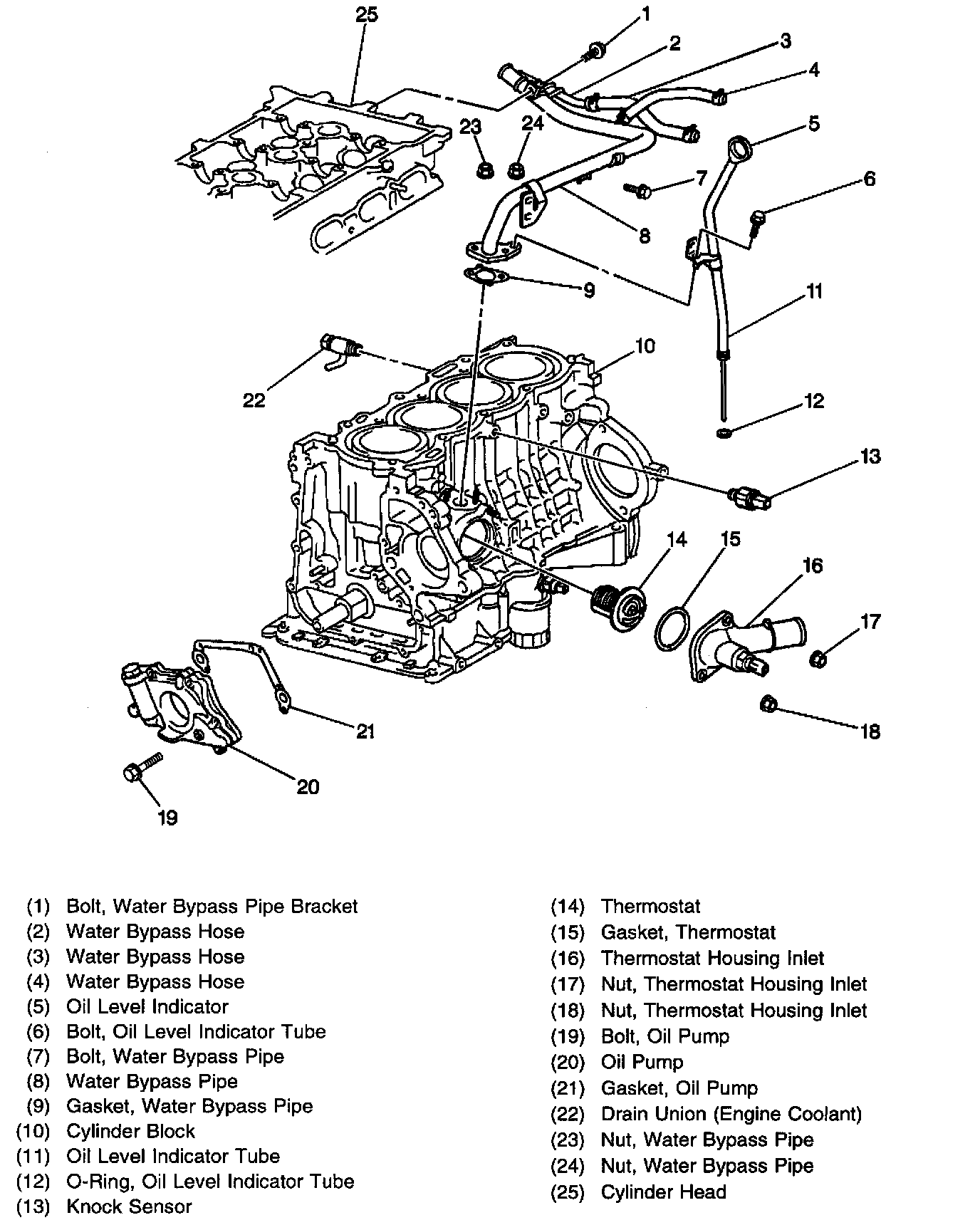

Oil and Cooling System Components
