Control Assembly Bulb Replacement

REMOVAL PROCEDURE




1. Remove the center console trim bezel.

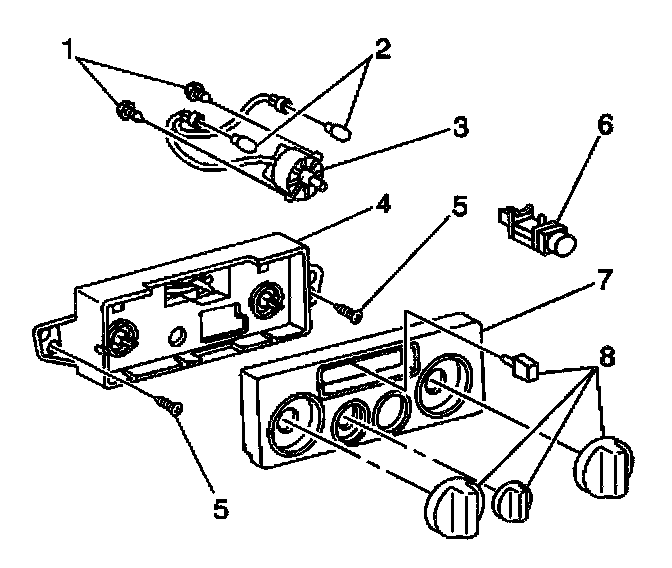

2. Remove the two screws (5) and pull the heater control (4) unit forward.
3. Remove the illumination bulbs (2).

INSTALLATION PROCEDURE




1. Install the illumination bulbs (2).
2. Install the heater control unit (4) to the instrument panel (IP). Secure with the two screws (5).
3. Install the center console trim bezel.
