Rear Wheel Alignment

Rear Toe Adjustment
The steps outlined in this procedure are general requirements for properly setting the rear toe. The alignment equipment varies in design and capabilities, therefore, consult with the equipment manufacturer's guidelines prior to setting this angle.

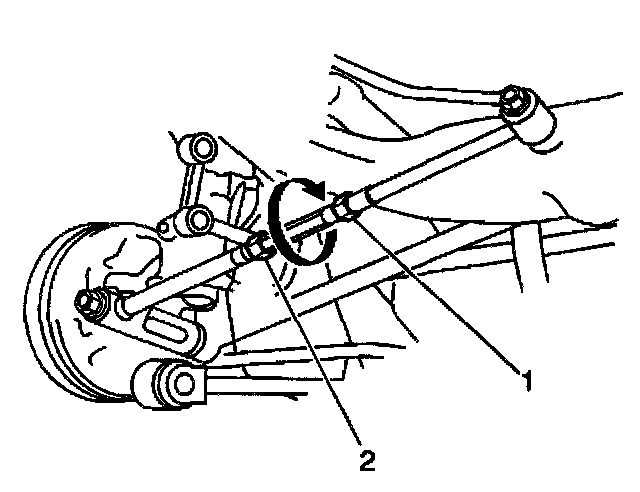

1. Loosen both tie rod end locknuts (1,2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Turn the threaded sleeve to achieve the desired toe specification.
- Tighten the tie rod end locknut to 56 Nm (41 ft. lbs.).
