Fuse Block Access Cover Replacement

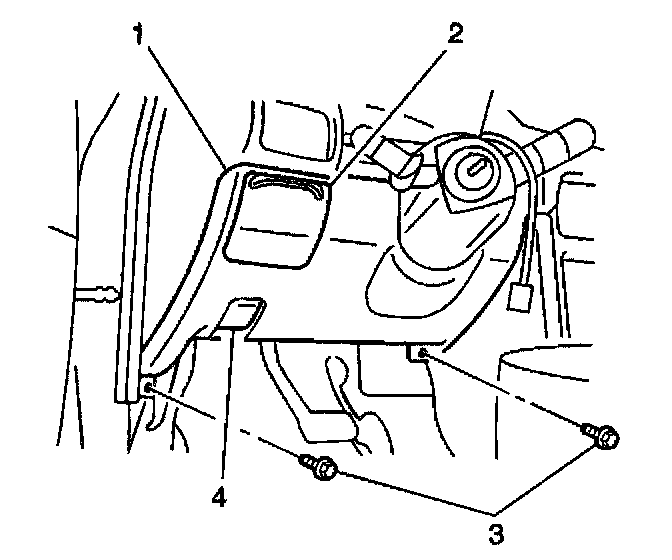

REMOVAL PROCEDURE 1.
Pull the I/P outer storage compartment (2) open until the left and right stoppers disengage.
2.
Remove the storage compartment (2) from the I/P drivers knee bolster trim (1).
INSTALLATION PROCEDURE 1.
Install the I/P outer storage compartment (2) to the I/P drivers knee bolster trim (1).
2.
Close the storage compartment (2).
