Control Module HVAC: Service and Repair

A/C Compressor Control Module Replacement

REMOVAL PROCEDURE




1. Remove the Instrument Panel (IP) compartment.
2. Disconnect the A/C compressor control module electrical connector.

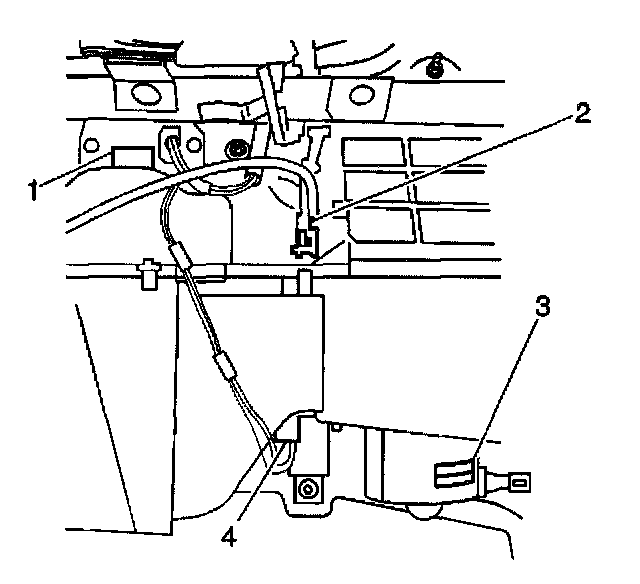

3. Remove the two screws and the A/C compressor control module (1).

INSTALLATION PROCEDURE




1. Install the A/C compressor control module (1) and secure with the two screws.
2. Connect the A/C compressor control module electrical connector.
3. Install the IP compartment.
