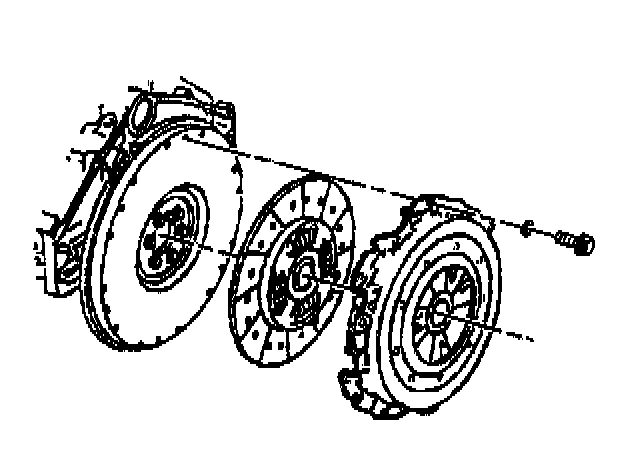

Pressure Plate

Secure the plates to the flywheel with bolts and washers.
^ Use the marks made during removal to align the plates if using the old clutch assembly.
^ Tighten each bolt one turn at a time in order to avoid warping the clutch pressure plate cover. Use a cries-cross pattern for tightening the bolts.
^ Tighten the pressure and cover plate bolts for the NV1500 transmission to 44.7 Nm (33 ft. lbs.).
^ Tighten the pressure and cover plate bolts for the NV3500 to 40 Nm (29 ft. lbs.).
