Fuel Tank Pressure Sensor: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Vehicle Lifting Caution in Service Precautions.




1. Raise the vehicle.
2. Remove the fuel tank Refer to Fuel Tank Replacement

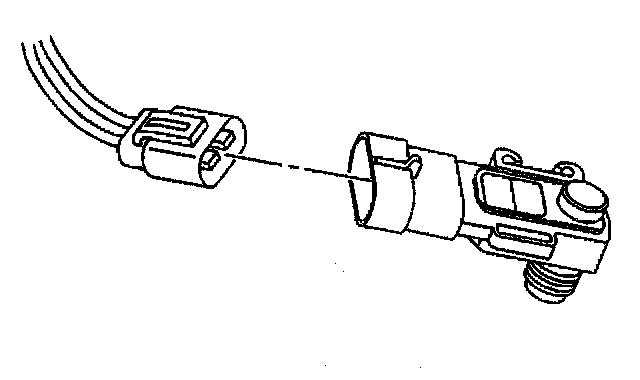

3. Remove the fuel tank pressure sensor electrical connector.

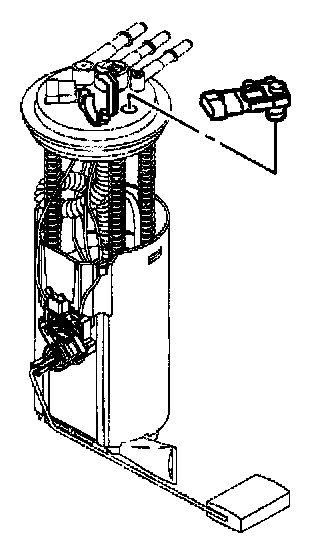

4. Remove the fuel tank pressure sensor.

INSTALLATION PROCEDURE




1. Install the fuel tank pressure sensor.




2. Install the fuel tank pressure sensor electrical connector.
3. Install the fuel tank.
4. Lower the vehicle.
5. Refill the fuel tank.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

6. Connect the negative battery cable.
7. Inspect for fuel leaks through the following steps:
7.1. Turn On the ignition, with the engine OFF for 2 seconds.
7.2. Turn OFF the ignition for 10 seconds.
7.3. Turn On the ignition, with the engine OFF.
7.4. Inspect for fuel leaks.
