Scan Tool Data List - Powertrain System

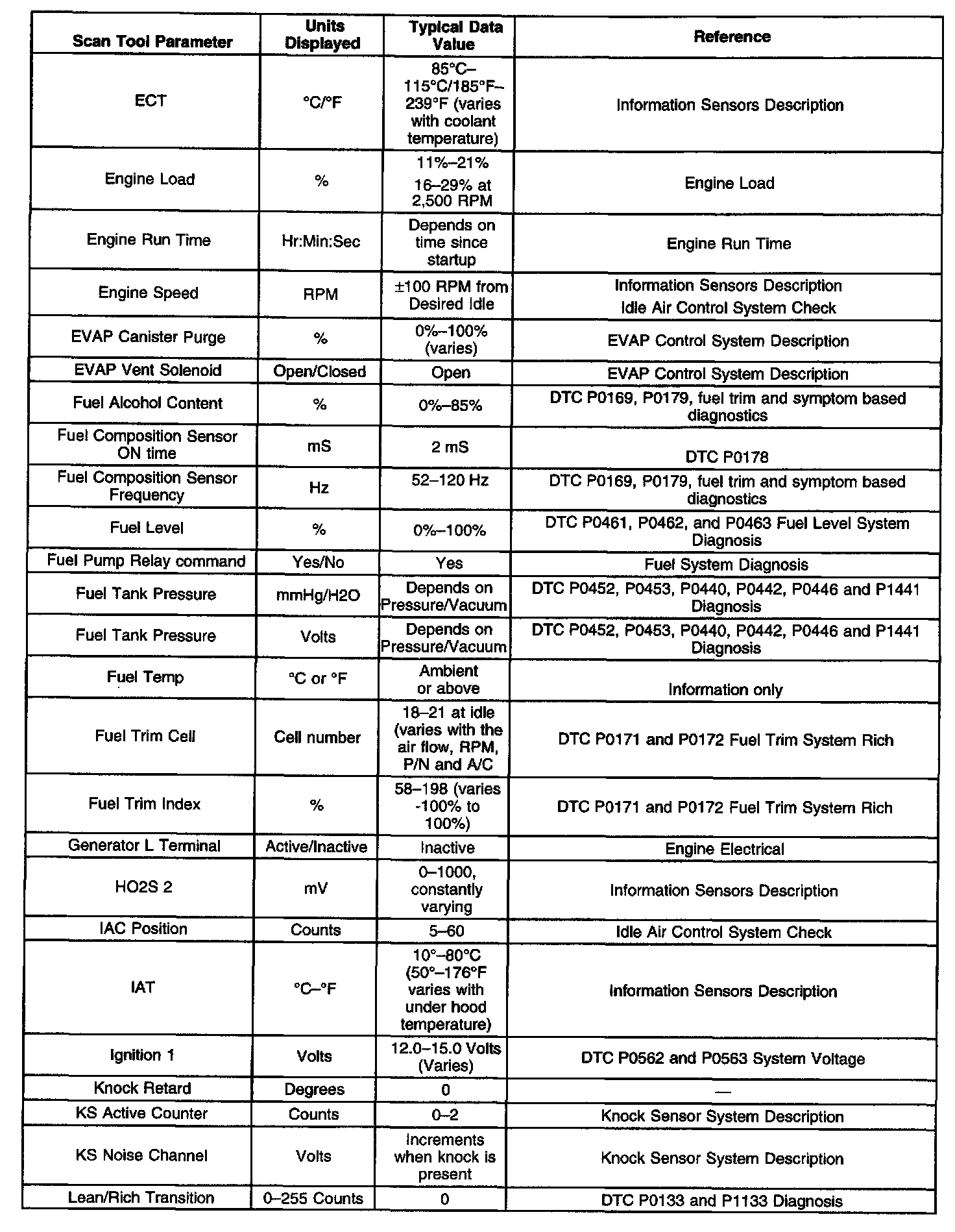

Scan Tool Data List (Part 1 Of 3):

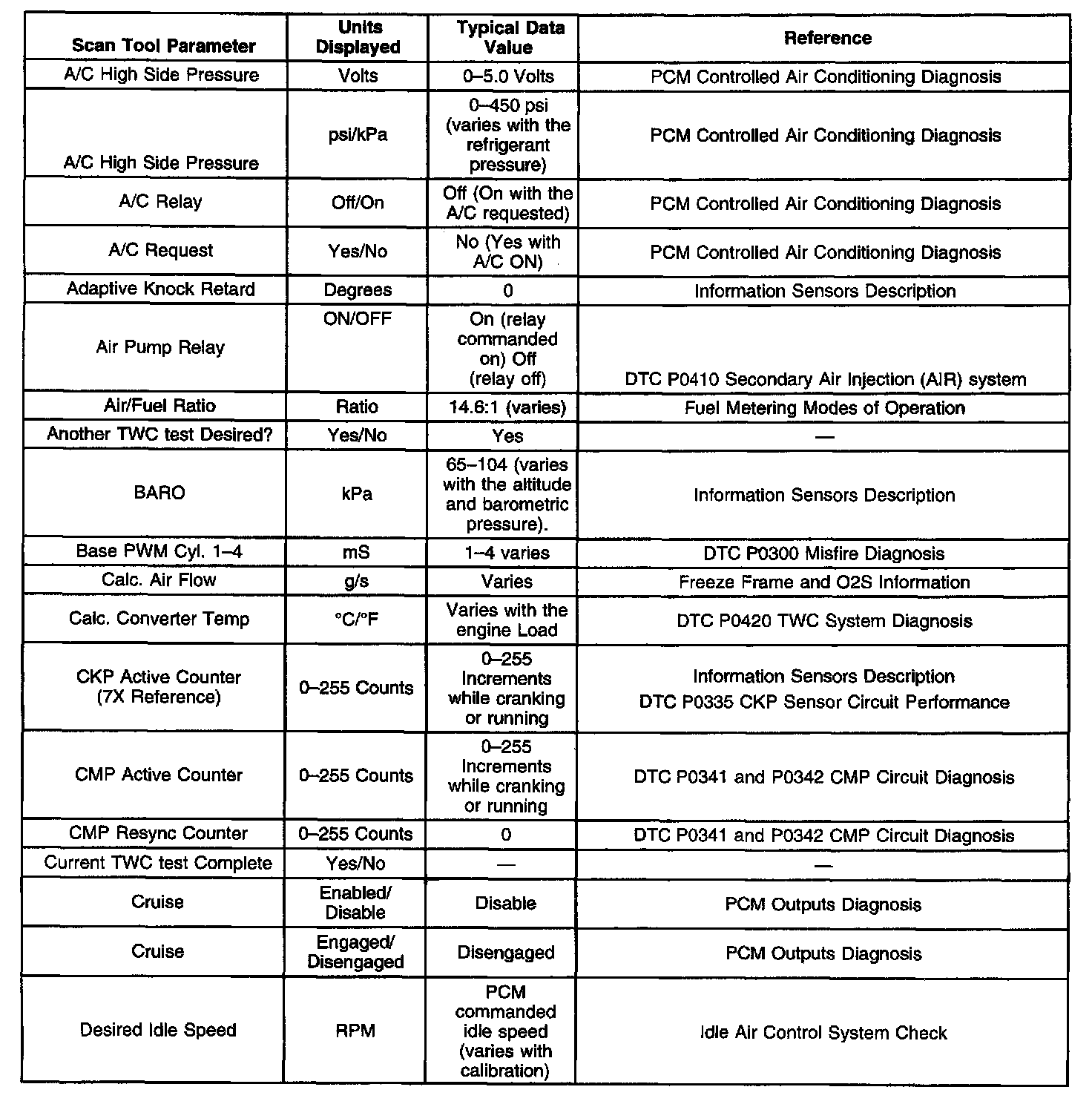

Scan Tool Data List (Part 2 Of 3):

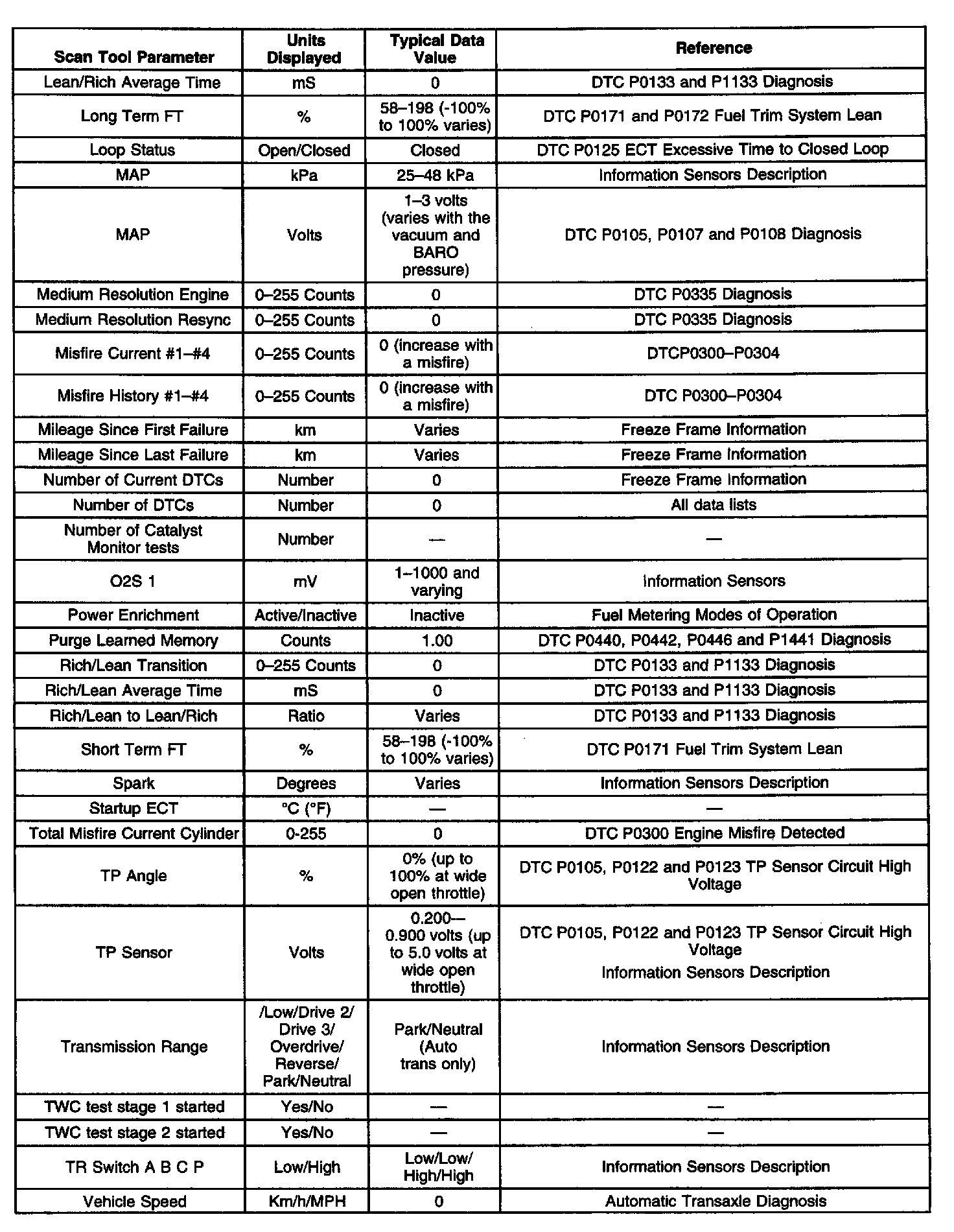

Scan Tool Data List (Part 3 Of 3):




Use the scan tool data listed in this table for a comparison AFTER the Powertrain On-Board Diagnostic System Check and finding the On-Board Diagnostic System is functioning properly without any DTCs displayed. The typical scan tool data values are an average of display values recorded from normally operating vehicles. The typical scan tool data values are intended to represent what a normally functioning system would display. The values you get may vary due to a low battery charge or other reasons.

Do not use a scan tool that displays erroneous data. Report the problem to the manufacturer. The use of a malfunctioning scan tool can result in misdiagnosis and the unnecessary replacement of good parts. Use only the parameters listed in the tables for diagnosis. If all values are within the range illustrated, refer to Symptoms. Symptom Related Diagnostic Procedures
