Removal Procedure
1.
Raise and support the vehicle. Refer to
Vehicle Lifting.
2.
Remove the hub cap (if equipped).
3.

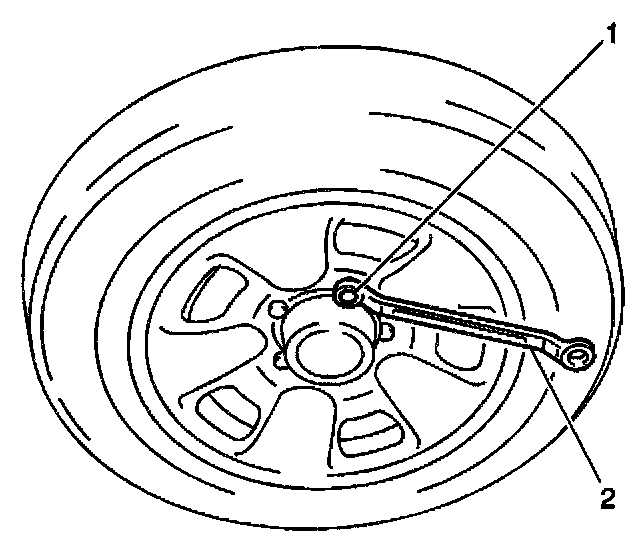

Remove the wheel nuts (1). Mark the location of the tire and wheel assembly to the hub assembly.
4.
Remove the tire and wheel assembly.
5.
Clean the wheel nuts, the studs, the hub, and the wheel mounting surfaces.
