Axle Nut
- Tools Required -
J37763 Front
Wheel Bearing Lock Nut Remover
^

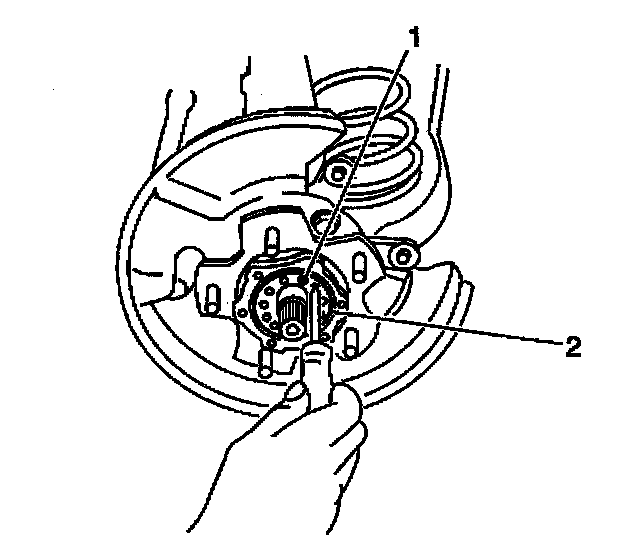

Use the J37763 in order to install the
wheel bearing lock nut (2).
^
Tighten the
wheel bearing lock nut to
216 Nm (159 ft. lbs.).
^
Install the front wheel inner bearing seal lock washer retainer (2). Verify that the screw holes align.
^
Install the 4 screws (1).
