Front Floor Console Replacement



Front Floor Console Replacement

Removal Procedure





1. Use a small, flat-bladed tool in order to unsnap the CD player plate, if equipped.
2. Remove the CD player, if equipped.

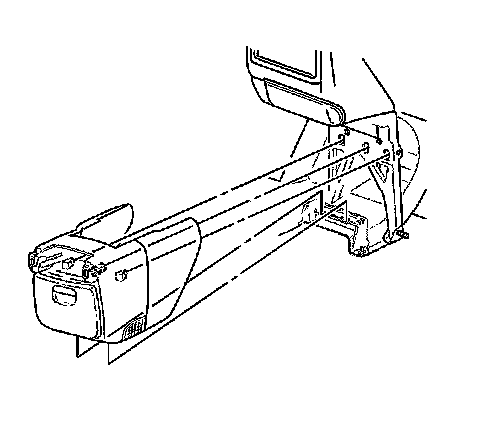

3. Remove the bolts/screws from the front floor console at the bracket.
4. Remove the front floor console from the bracket.



Installation Procedure





1. Align the front floor console tabs to the rear bracket.
2. Align the front floor console tabs to the front bracket.
3. Slide the front floor console tabs to the brackets.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the bolts/screws to the front floor console at the bracket.

Tighten the bolts/screws to 2.5 N.m (22 lb in).

5. Install the CD player, if equipped.




6. Install the CD player trim plate, if equipped.
