Seat Cover: Service and Repair

Rear Seat Back Recliner Cover Replacement

Removal Procedure

1. Remove the recliner cover screws.

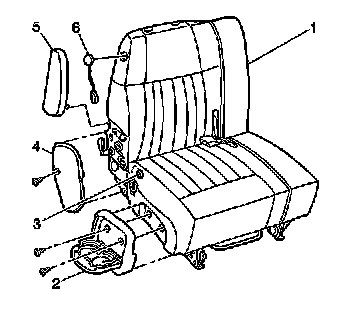

2. Separate the covers (4) from the recliner starting from the rear of the cover.

Installation Procedure

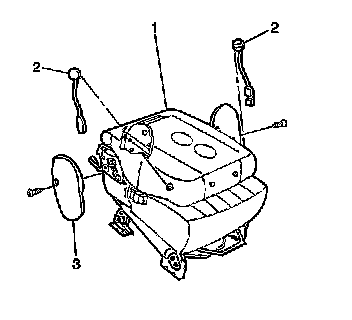

1. Install the cover (3) to the recliner starting from the front of the cover.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the recliner cover screws.

Tighten the recliner cover screws to 2 N.m (18 lb in).
