Front

Removal Procedure

^ Tools Required
- J 42450-A Hub Cleaning Kit





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel. Tire and Wheel Removal and Installation.
3. Install a C-clamp (2) over the top of the brake caliper and against the back of the outboard brake pad.
4. Tighten the C-clamp (2) until the brake caliper piston pushes into the brake caliper bore enough to slide the brake caliper (1) off of the rotor.
5. Remove the C-clamp (2) from the brake caliper.

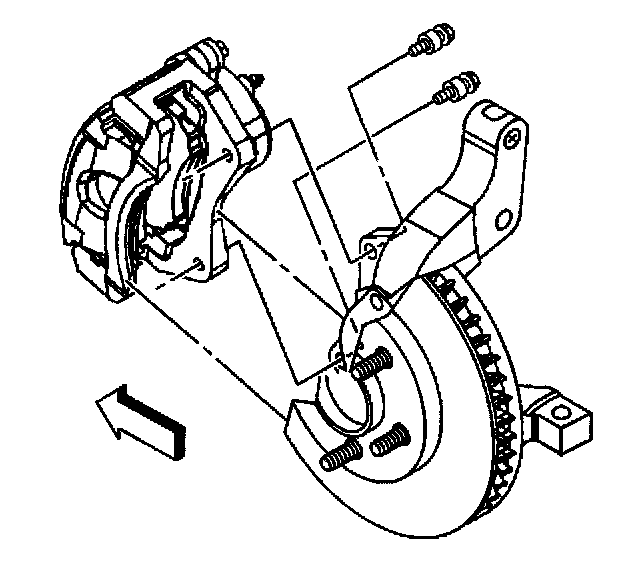

6. Remove the brake caliper bracket with the brake caliper.

Notice: Do not allow calipers to hang from the flexible hoses. Doing so can damage the hoses.

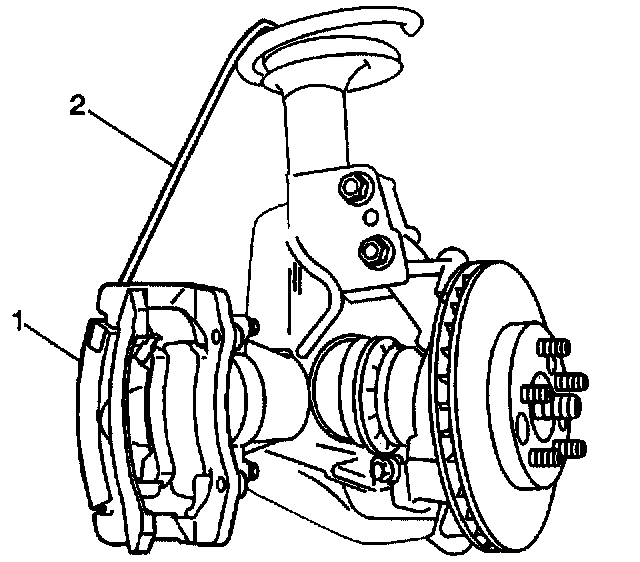

7. Use a strap (2) or heavy gage wire in order to support the brake caliper (1) and the brake caliper bracket.
8. Remove the brake rotor.

Installation Procedure





1. Clean any corrosion from the brake rotor flange.
2. Use the J 42450-A in order to clean the hub flange.
3. Install the brake rotor.
4. Install the brake caliper bracket with the brake caliper. Refer to Brake Caliper Bracket Replacement - Front.
5. Install the tire and wheel. Tire and Wheel Removal and Installation.
6. Lower the vehicle.
