Timing Chain: Diagrams

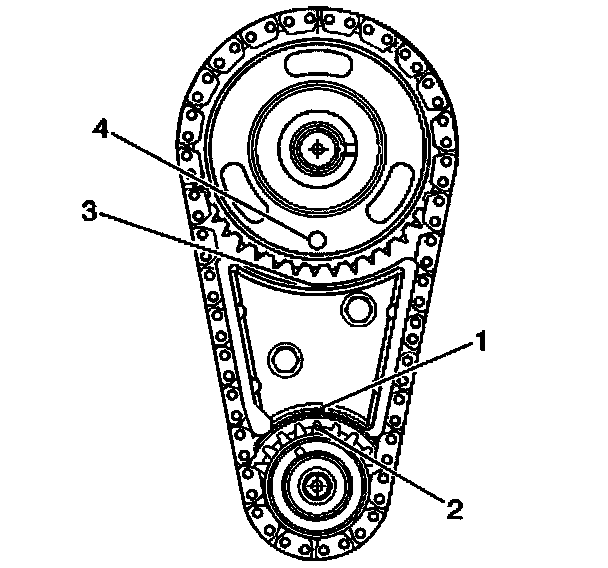

- Align the crankshaft timing mark (2) to the timing mark on the bottom of the timing chain dampener (1).
- Align the timing mark on the camshaft gear (4) with the timing mark on top of the timing chain dampener (3).
