Marker Lamp: Service and Repair




REMOVAL PROCEDURE
1. Open and suitably support the hood.

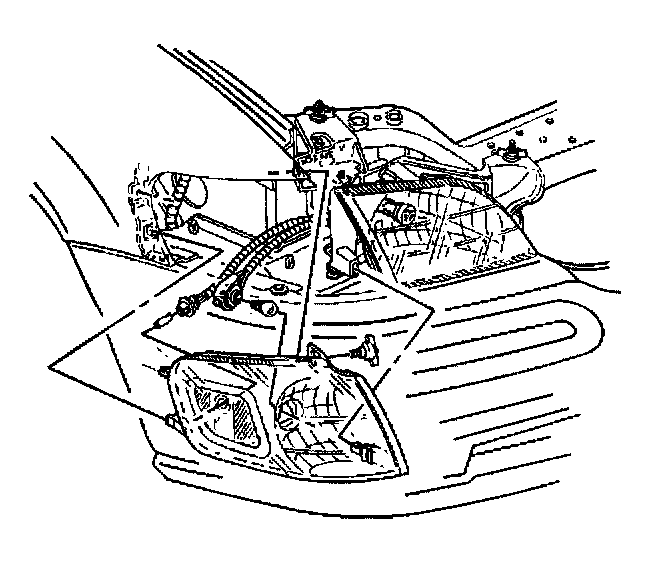

2. Remove the wiring nut from the headlamp bracket to front park/turn signal/sidemarker lamp bracket.
3. Remove the front park/turn signal/sidemarker lamp from the body.
4. Press the tab while turning counterclockwise in order to unscrew the bulb socket from the front park/turn signal/sidemarker lamp.
5. Pull the bulb from the socket.

INSTALLATION PROCEDURE
1. Press the bulb into the socket.
2. Install the socket to the front park/turn signal/sidemarker lamp.
3. Install the front park/turn signal/sidemarker lamp to the body:
3.1. Locate the tabs into the fender.
3.2. Install the tab into the headlamp bracket.
4. Install the wiring nut to headlamp bracket to the front park/turn signal/sidemarker lamp bracket.
5. Close the hood.
