Daytime Running Lamp Control Unit: Service and Repair

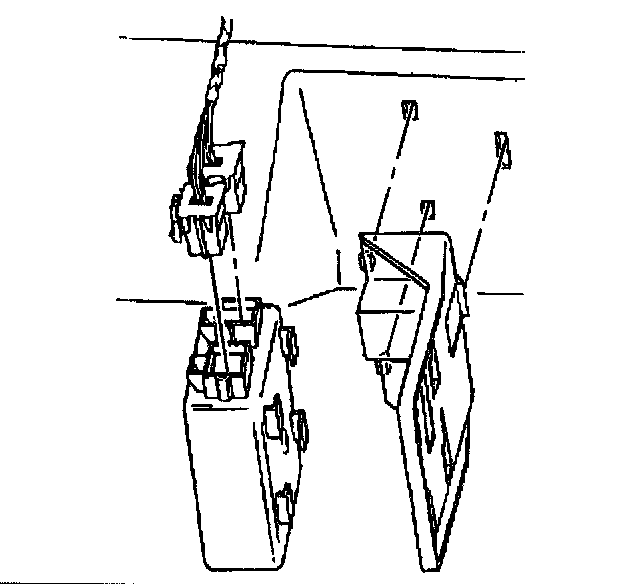

REMOVAL PROCEDURE




1. Disconnect the battery negative cable.
2. Remove the instrument panel insulator.




3. Slide the daytime running lamp module from the bracket.
4. Disconnect the electrical connectors.

INSTALLATION PROCEDURE




1. Position the daytime running lamp module in the bracket.




2. Slide the daytime running lamp module into the bracket in order to secure the module.
3. Connect the electrical connectors.
4. Install the instrument panel insulator.
5. Connect the battery negative cable.
