Cylinder Head Specifications

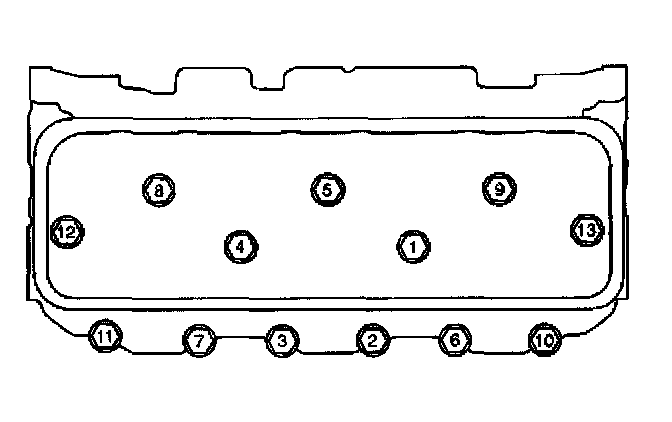

Tighten the bolts in sequence on the first pass to 30 Nm (22 ft. lbs.).
Use the J 36660-A in order to tighten the cylinder head bolts in sequence on the final pass.
- Tighten the long bolts (1, 4, 5, 8, and 9) on the final pass in sequence to 75 degrees.
- Tighten the medium bolts (12 and 13) on the final pass in sequence to 65 degrees.
- Tighten the short bolts (2, 3, 6, 7, 10, and 11) on the final pass in sequence to 55 degrees.
