Cross-Member: Service and Repair



Transmission Support Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Support the transmission with a transmission jack.
3. Remove the 2 nuts securing the transmission mount to the transmission support.
4. Raise the rear of the transmission.

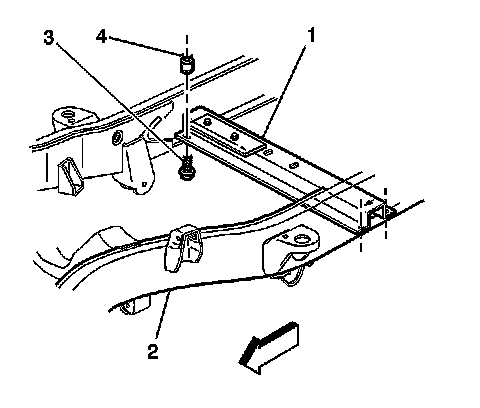

5. Remove the transmission support nuts (4) and bolts (3).
6. Remove the transmission support from the vehicle.



Installation Procedure





1. Install the transmission support (1) to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission support nuts and bolts.

Tighten the nuts and bolts to 65 N.m (48 lb ft).





3. Install the 2 nuts securing the transmission mount to the transmission support.

Tighten the nuts to 40 N.m (30 lb ft).

4. Remove the transmission jack.
5. Lower the vehicle.
