Steering Mounted Controls Transmitter: Testing and Inspection

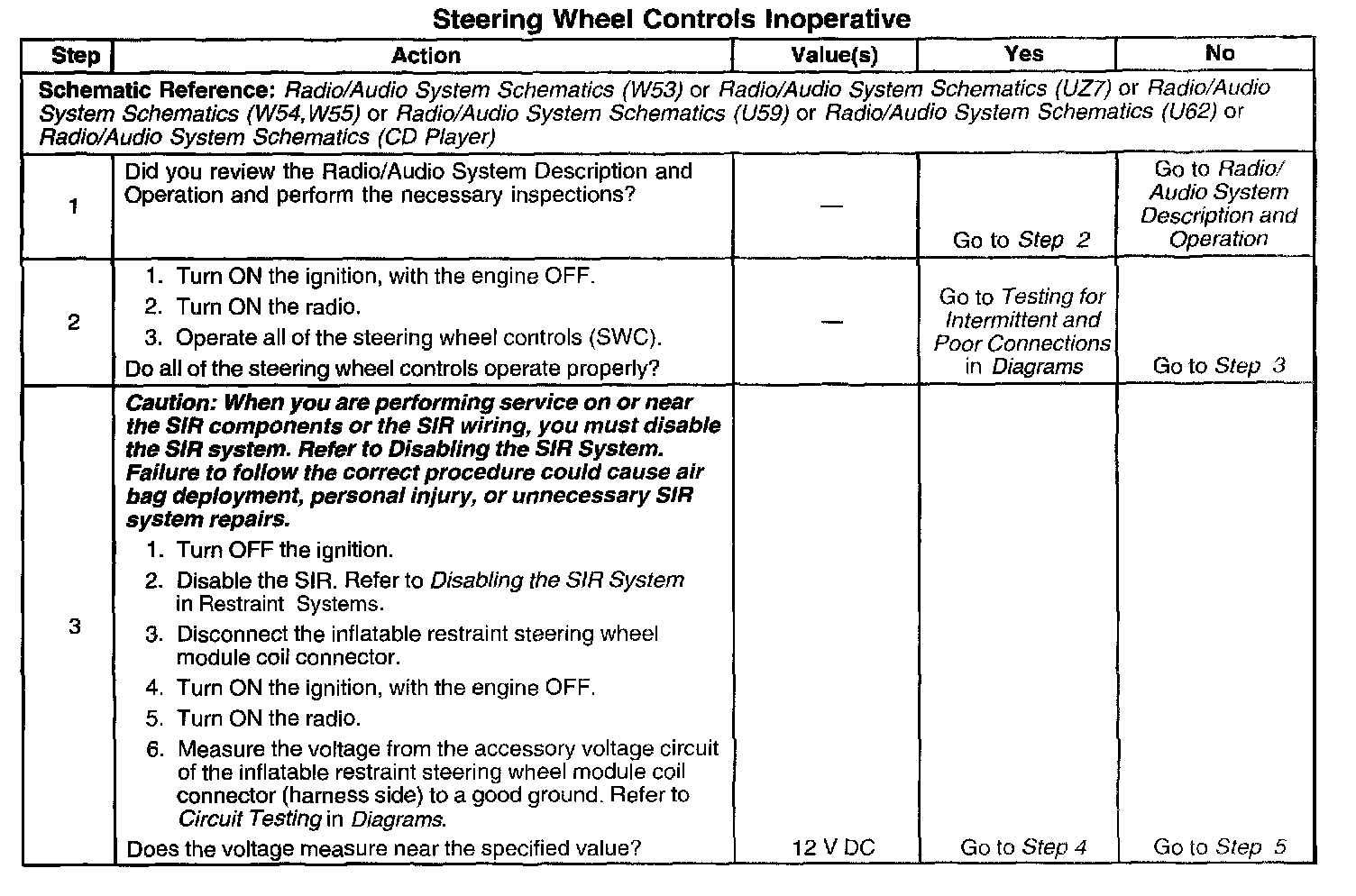

Steps 1-3:

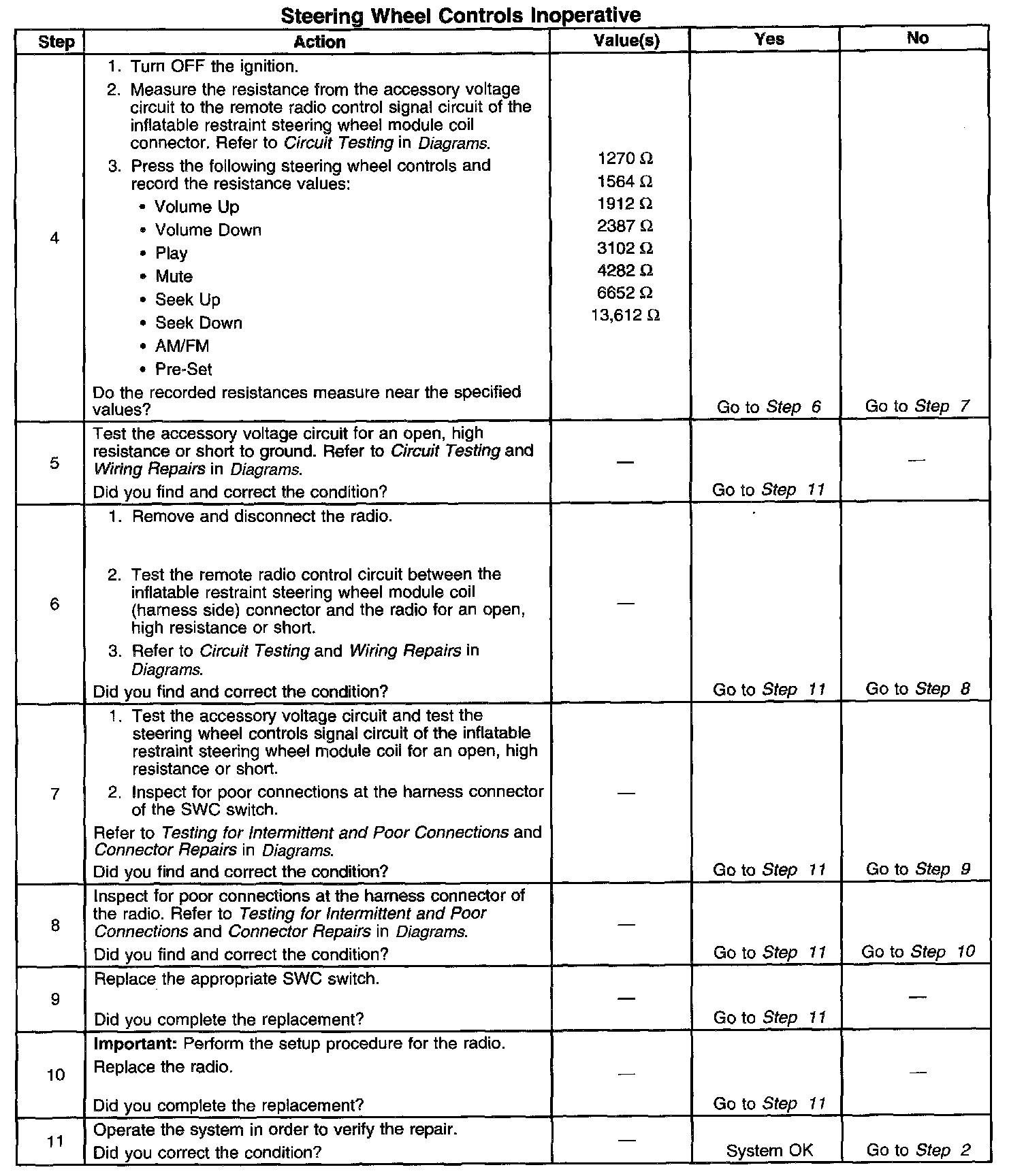

Steps 4-11:

"For a description of the RPO Code(s) Shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application and ID."
