Generator Splash Shield Replacement
REMOVAL PROCEDURE 1.

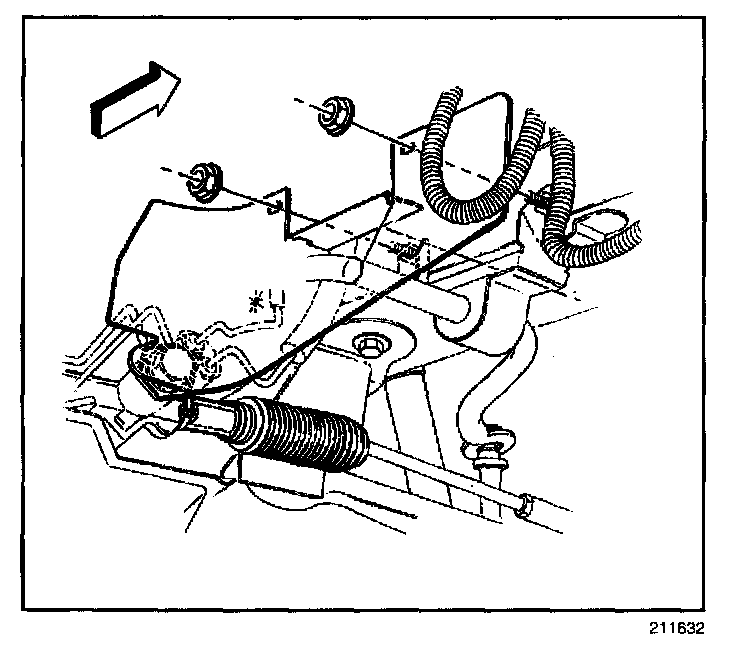

Remove the generator splash shield from the tie strap on the steering rack.
2.
Remove the generator splash shield push-on nuts.
3.
Remove the generator splash shield.
INSTALLATION PROCEDURE 1.
Install the generator splash shield.
2.
Install the generator splash shield push-on nuts.
3.
Install the generator splash shield to the tie strap on the steering rack.
