Console Trim Plate Replacement



Console Trim Plate Replacement

Removal Procedure




1. Remove the front floor console.

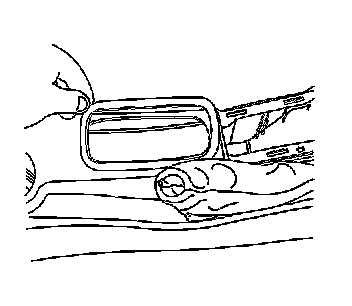

2. Remove the trim plate bezel from the front floor console using a small flat-bladed tool in order to release the retainer lip.
Pull the trim plate bezel slowly from the front floor console when the bezel is loosened.

Installation Procedure




1. Install the trim plate bezel to the front floor console by fitting the retainer lip to the console and working around the opening.
2. Use a small flat-bladed tool in order to assist in the positioning on the retainer lip to the console.
3. Install the front floor console.
