Trans Floor Shift Control Indicator Lamp Replacement
REMOVAL PROCEDURE 1.
Remove the front floor console.
2.

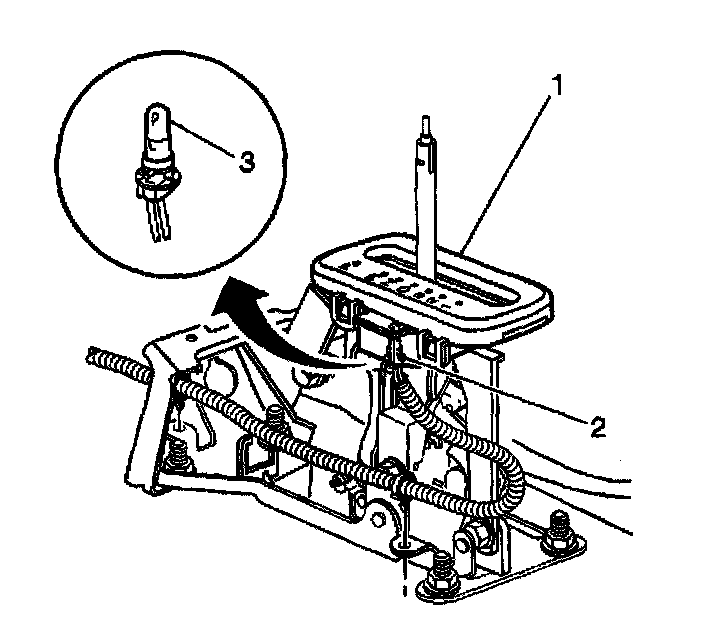

Disconnect the shift control bulb/socket (2) from the shift control.
3.
Remove the bulb (3) from the socket.
INSTALLATION PROCEDURE 1.
Install the bulb (3) to the socket.
2.
Connect the shift control bulb/socket (2) to the shift control.
3.
Install the front floor console.
