Air Duct: Service and Repair

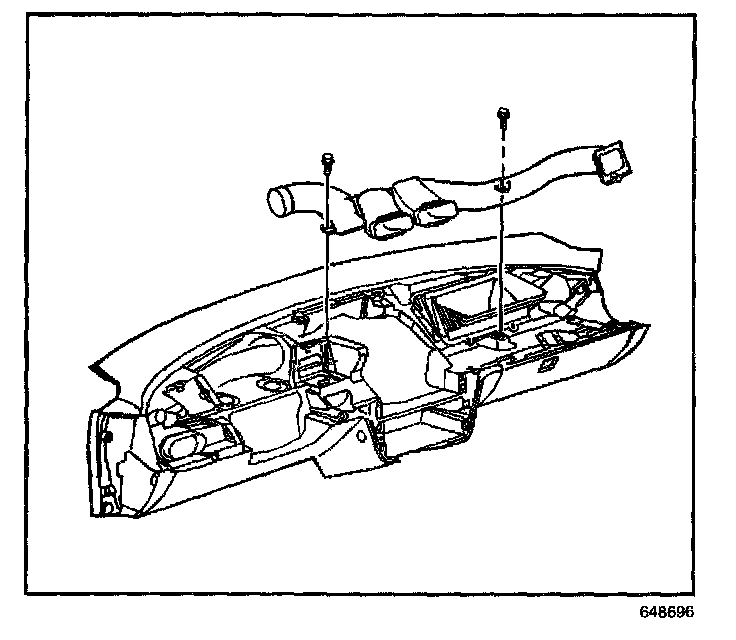

AIR DISTRIBUTOR DUCT REPLACEMENT

REMOVAL PROCEDURE




1. Remove the IP trim pad.
2. Remove the air distribution duct screws.
3. Remove the air distribution duct.
4. Remove the right side air distribution duct:

INSTALLATION PROCEDURE




1. Position the air distribution duct through the dash braces.
2. Install the air distribution duct and connect to the right side duct.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the air distribution duct screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the IP trim pad.
