HVAC Control Lamp Bulb Replacement

REMOVAL PROCEDURE




1. Remove the IP trim plate.
2. Remove the HVAC control assembly retaining screws.
3. Pull the HVAC control assembly away from the IP.

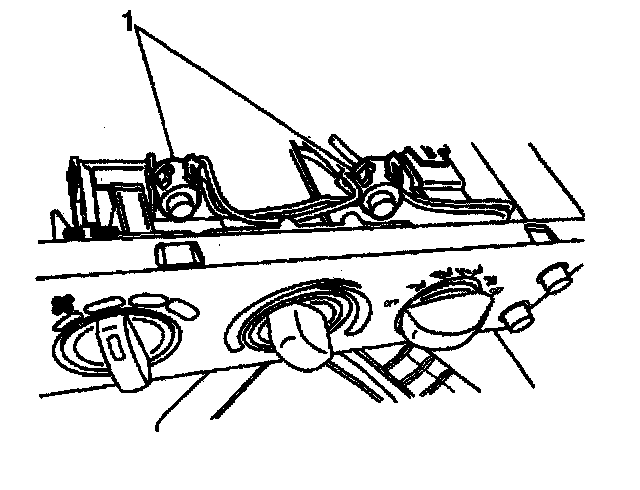

4. Twist the lamp sockets to remove (1).
5. Remove the bulbs from the sockets.

INSTALLATION PROCEDURE




1. Install the bulbs to the sockets (1).
2. Install the HVAC control assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the HVAC control assembly retaining screws.

Tighten
Tighten the screws 2 N.m (18 lb in).

4. Install the IP trim plate.
