Dome Lamp: Service and Repair
DOME LAMP REPLACEMENTREMOVAL PROCEDURE

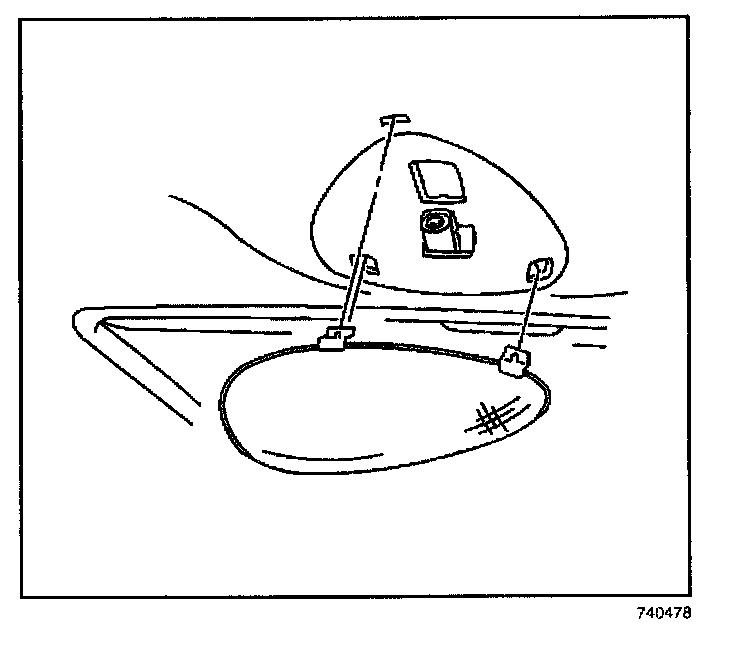

1. From the rear of the dome lamp lens, insert a flat-bladed tool (1) between the dome lamp lens and the headliner (2).
2. Use the flat bladed tool in order to push the tab at the rear of the dome lamp lens forward. Disengage the tab from the headliner.
3. Pull the dome lamp lens rearward in order to disengage the 2 tabs at the front of the dome lamp lens.
4. Remove the dome lamp bulb from the socket.
5. Remove the reading lamp bulb(s) from the socket, if equipped.
INSTALLATION PROCEDURE
1. Install the reading lamp bulb(s) to the socket, if equipped.
2. Install the bulb to the socket.
3. Insert the 2 forward tabs on the dome lamp lens into the appropriate holes in the headliner (2).
4. Push at the rear of the dome lamp lens until the rear tab is fully seated in the headliner.
