Door Switch: Service and Repair

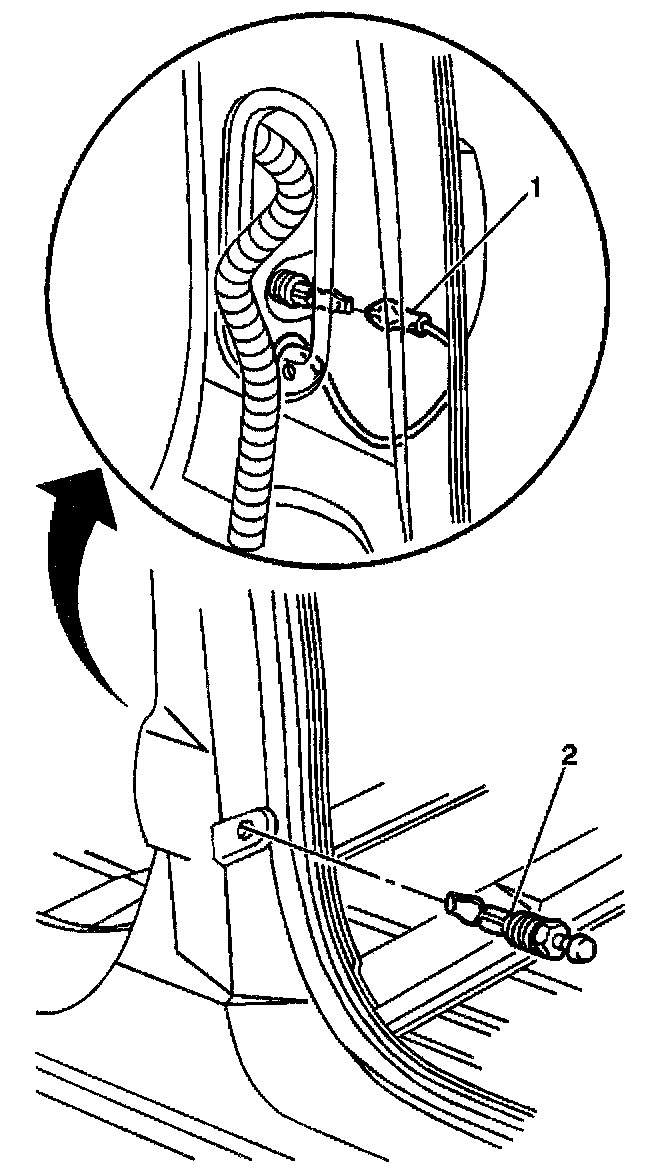

DOOR JAMB SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the door jamb.
2. Disconnect the door jamb switch electrical connector.
3. Remove the door jamb switch from the vehicle door pillar.

INSTALLATION PROCEDURE

IMPORTANT: When a new jamb switch is installed and the door is closed the first time, the plunger is forced into the sleeve and automatically adjusts the jamb switch for that particular door. If a jamb switch fails, do not readjust the switch. Install a new jamb switch.




1. Position the door jamb switch by the pillar.
2. Connect the door jamb switch electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the door jamb switch (2).

Tighten
Tighten the door jamb switch to 10 N.m (89 lb in).
