P/S Return Line Replacement

Removal Procedure

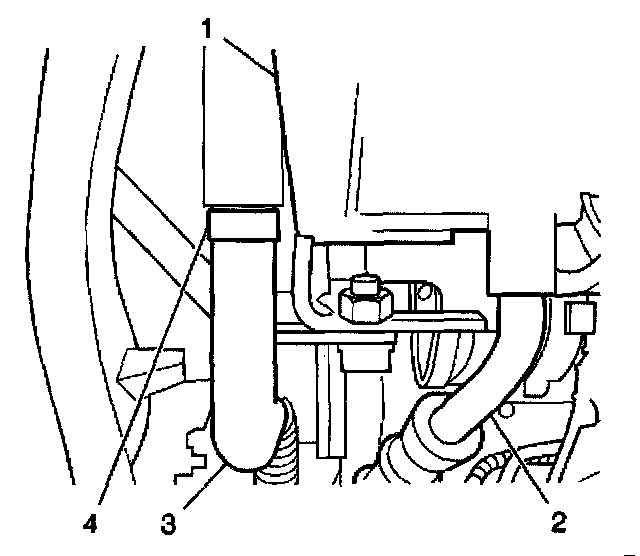

1. Remove the clamp t4) and the power steering return hose (3) from the steering pump (1).
2. Raise the vehicle on a hoist. Refer to Vehicle Lifting.
3. Remove the front exhaust pipe, automatic transmission only. Refer to Intermediate Pipe Replacement in Exhaust Systems.

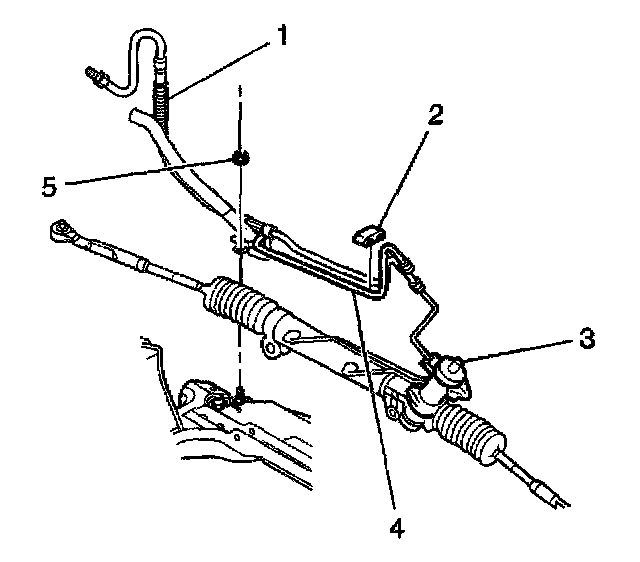

4. Remove the power steering return hose (4) from the steering gear (3).
5. Remove the power steering return hose retainer nut (5).
6. Remove the power steering return hose (4) from the vehicle.

Installation Procedure

Notice Refer to Installing Hoses Without Twists or Bends Notice in Service Precautions.





1. Install the power steering return hose (4) to the vehicle.

Notice Refer to Fastener Notice in Service Precautions.

2. Install the power steering return hose retainer nut (5).
- Tighten the nut to 13 Nm (10 ft. lbs.).
3. Install the power steering return hose (4) to the power steering gear (3).
- Tighten the fitting to 27 Nm (20 ft. lbs.).
4. Install the front exhaust pipe, if removed. Refer to Intermediate Pipe Replacement in Exhaust Systems.
5. Lower the vehicle.





6. Install the power steering return hose (3) and the clamp (4) to the power steering pump (1).
7. Bleed the power steering system. Refer to Bleeding the Power Steering System.
