Positive Crankcase Ventilation: Service and Repair

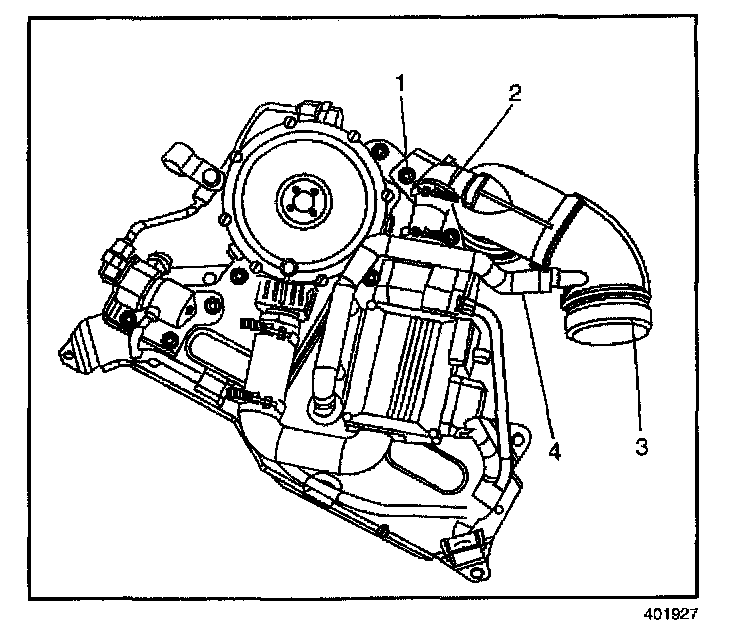

PCV MAKE-UP AIR HOSE REPLACEMENTREMOVAL PROCEDURE 1.
Disconnect the hose from the valve cover.
2.
Disconnect the hose from the gas distribution adapter (GDA).
3.
Remove the
PCV make-up air hose (4).
INSTALLATION PROCEDURE 1.
Install the
PCV make-up air hose (4).
2.
Connect the hose to the gas distribution adapter (GDA).
3.
Connect the hose to the valve cover.
