Child Restraint: Service and Repair

CHILD SHOULDER BELT GUIDE REROUTER REPLACEMENT - REAR

REMOVAL PROCEDURE

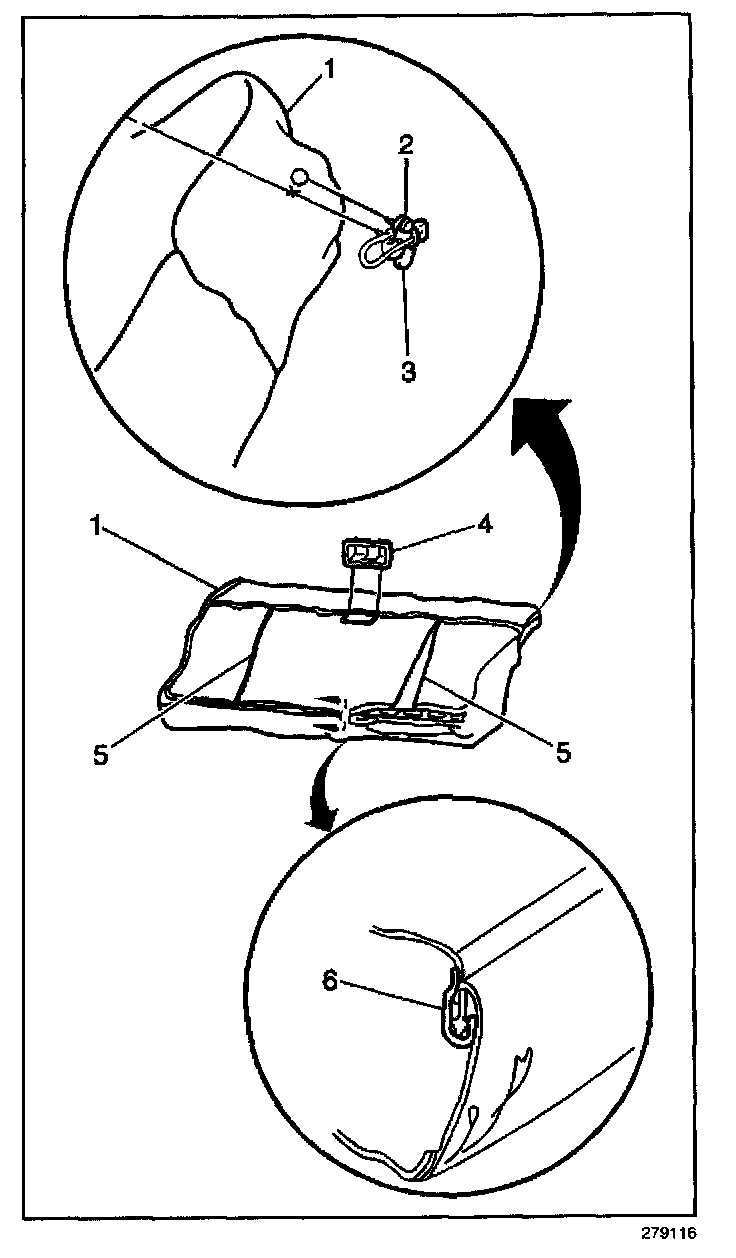

1. Position the rear seat back to remove the child comfort guide retainer from the rear seat back.
2. Remove the child comfort guide retainer bolt (2) from the rear seat back.
3. Remove the child comfort guide retainer (3) from the bolt (2).

INSTALLATION PROCEDURE




1. Install the child comfort guide (3) to the bolt (2).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the bolt (2) to the rear seat.

Tighten
Tighten the child comfort guide retainer bolt (2) to 10 N.m (89 lb ft).

3. Reposition the rear seat back to the original position.
