Cylinder Head Specifications

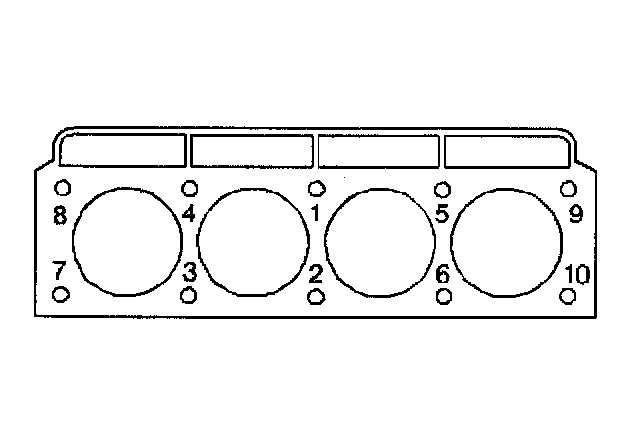

Use the following sequence in order to tighten the cylinder head bolts:
1. Tighten bolt 1 to 63 Nm (46 ft. lbs.).
2. Tighten bolt 2 to 58 Nm (43 ft. lbs.).
3. Tighten bolt 3 to 58 Nm (43 ft. lbs.).
4. Tighten bolt 4 to 63 Nm (46 ft. lbs.).
5. Tighten bolt 5 to 63 Nm (46 ft. lbs.).
6. Tighten bolt 6 to 58 Nm (43 ft. lbs.).
7. Tighten bolt 7 to 58 Nm (43 ft. lbs.).
8. Tighten bolt 8 to 63 Nm (46 ft. lbs.).
9. Tighten bolt 9 to 63 Nm (46 ft. lbs.).
10. Tighten bolt 10 to 58 Nm (43 ft. lbs.).
11. Use J36660-A to tighten all the cylinder head bolts an additional 90 degrees in sequence.
