Power Window Switch Replacement - Console Mounted

REMOVAL PROCEDURE

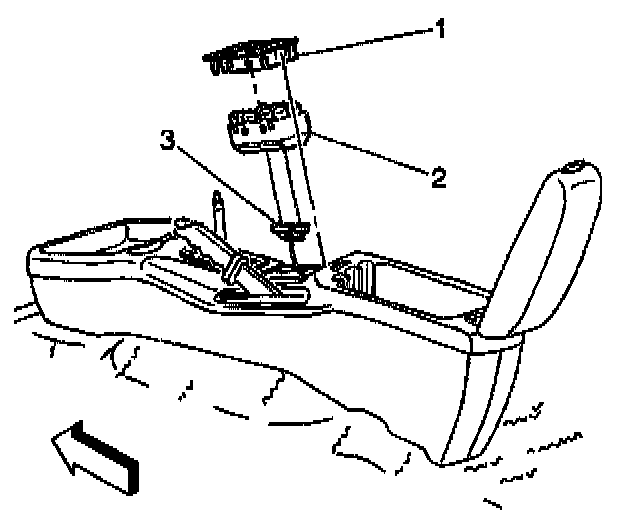

1. Remove the power window switch assembly from the front floor console using a small flat-bladed tool.
2. Disconnect the electrical connector (3) from the power window switches (2).
3. Remove the power window switches (2) from the trim plate (1) using a small flat-bladed tool to release the retainers.

INSTALLATION PROCEDURE




1. Install the power window switches (2) to the trim plate (1) pressing into place until fully seated
2. Connect the electrical connector (3) to the power window switches (2).
3. Install the power window switch assembly to the front floor console pressing into place until fully seated.
