DCM-R

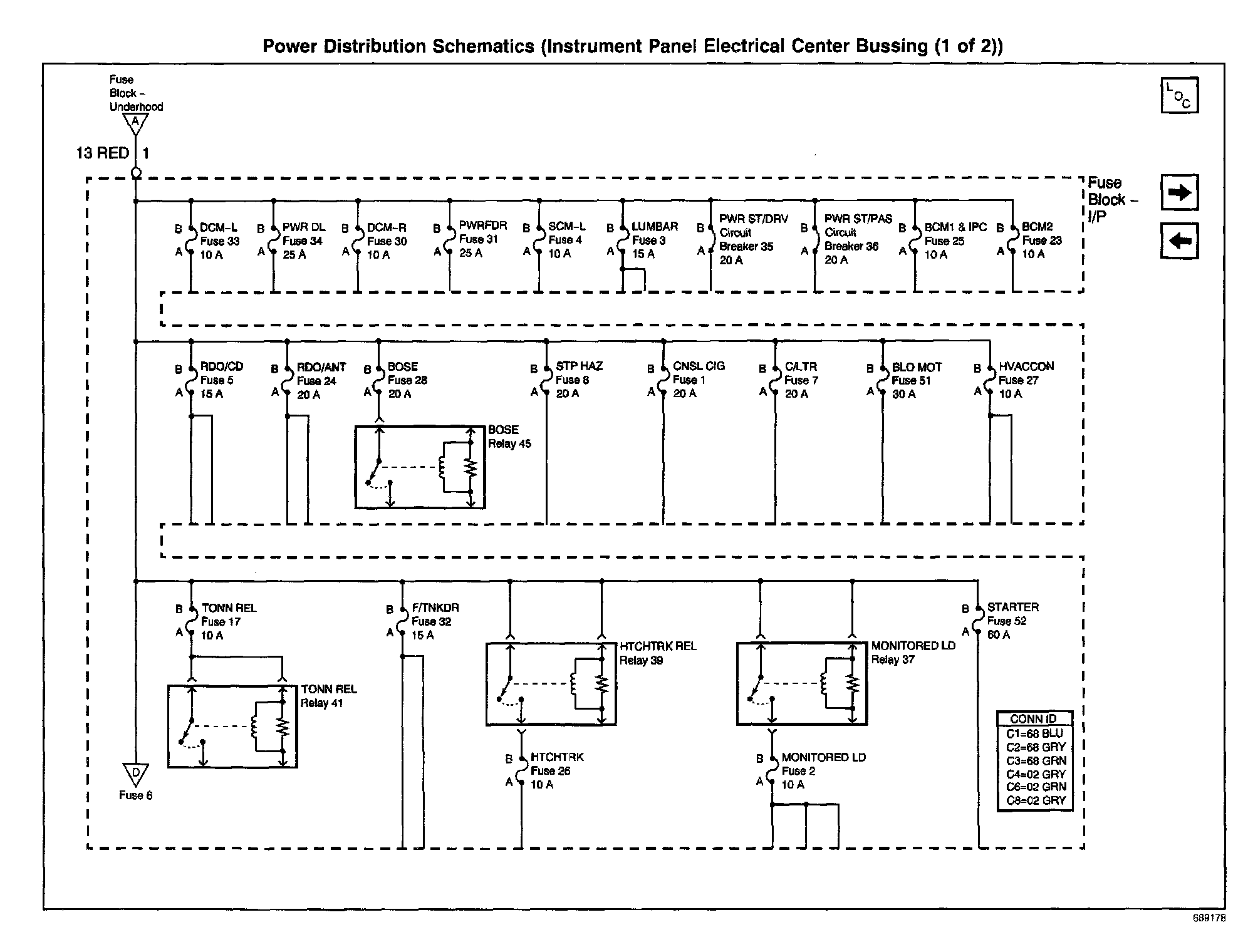

Power Distribution Schematics: Instrument Panel Electrical Center Bussing (Part 1 Of 2):

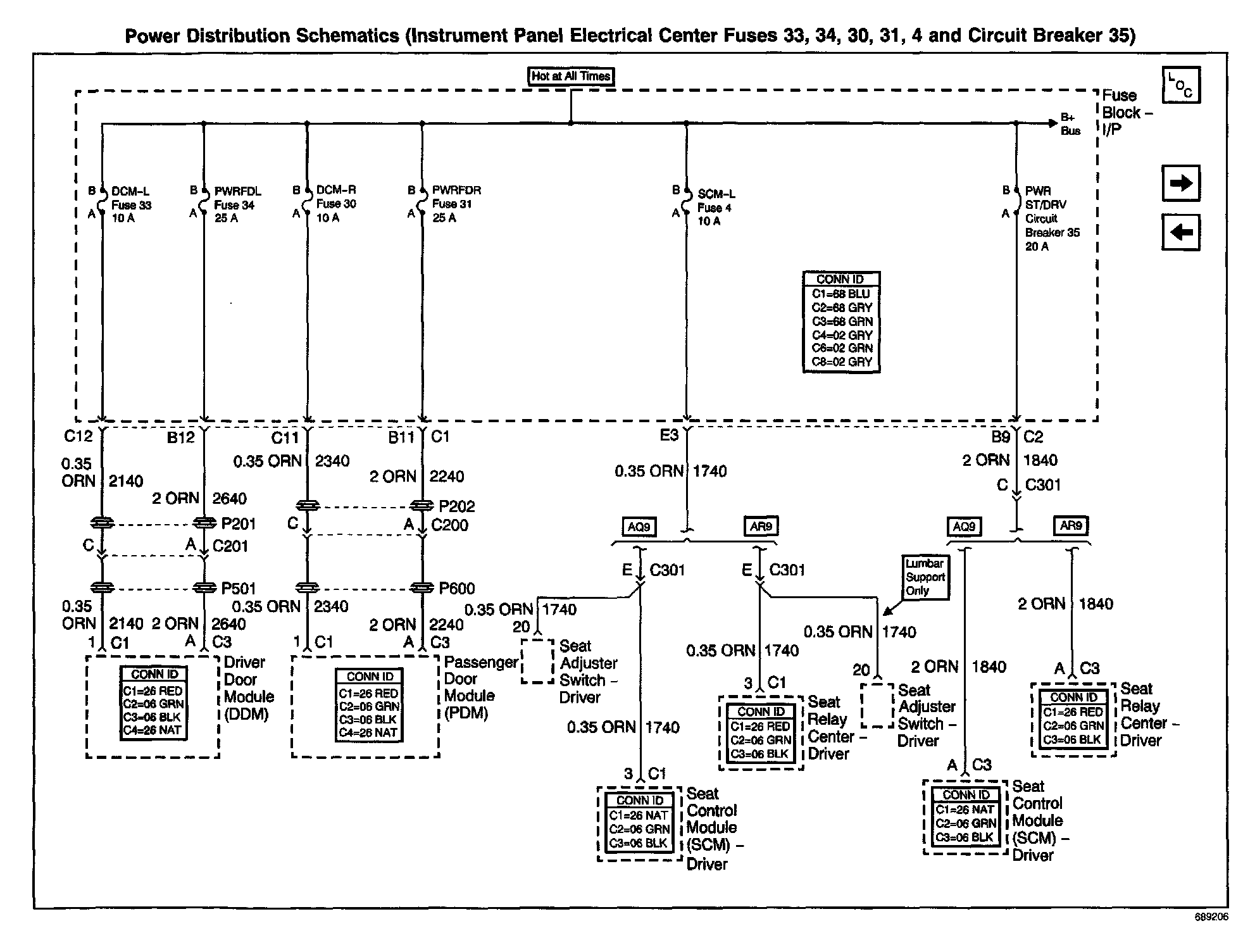

Power Distribution Schematics: Instrument Panel Electrical Center Fuses 33, 34, 30, 31, 4 and Circuit Breaker 35:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
