Oil Pressure Sensor: Service and Repair

ENGINE OIL PRESSURE SENSOR OR SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the intake manifold.
2. Remove the Engine Oil Pressure (EOP) sensor electrical connector.

IMPORTANT: Clean the area around the EOP sensor before removal. This avoids debris from entering the engine.

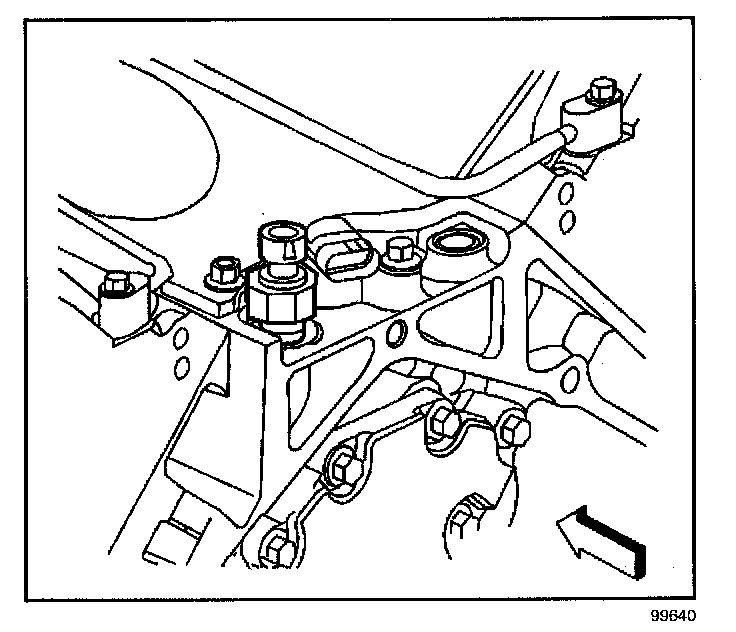

3. Remove the EOP sensor.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

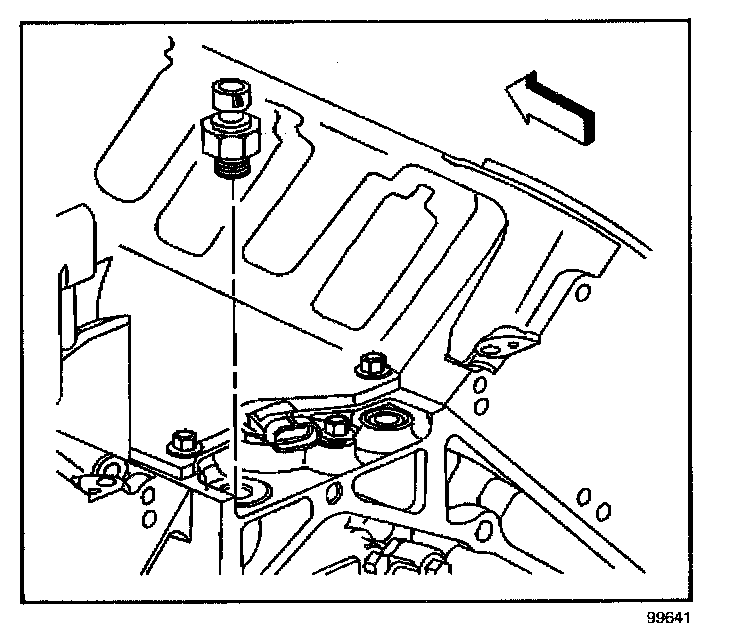

1. Install the new EOP sensor.

Tighten
Tighten the EOP sensor to 20 N.m (15 lb ft).




2. Install the EOP sensor electrical connector.
3. Install the intake manifold.
