Fastener Tightening Specifications

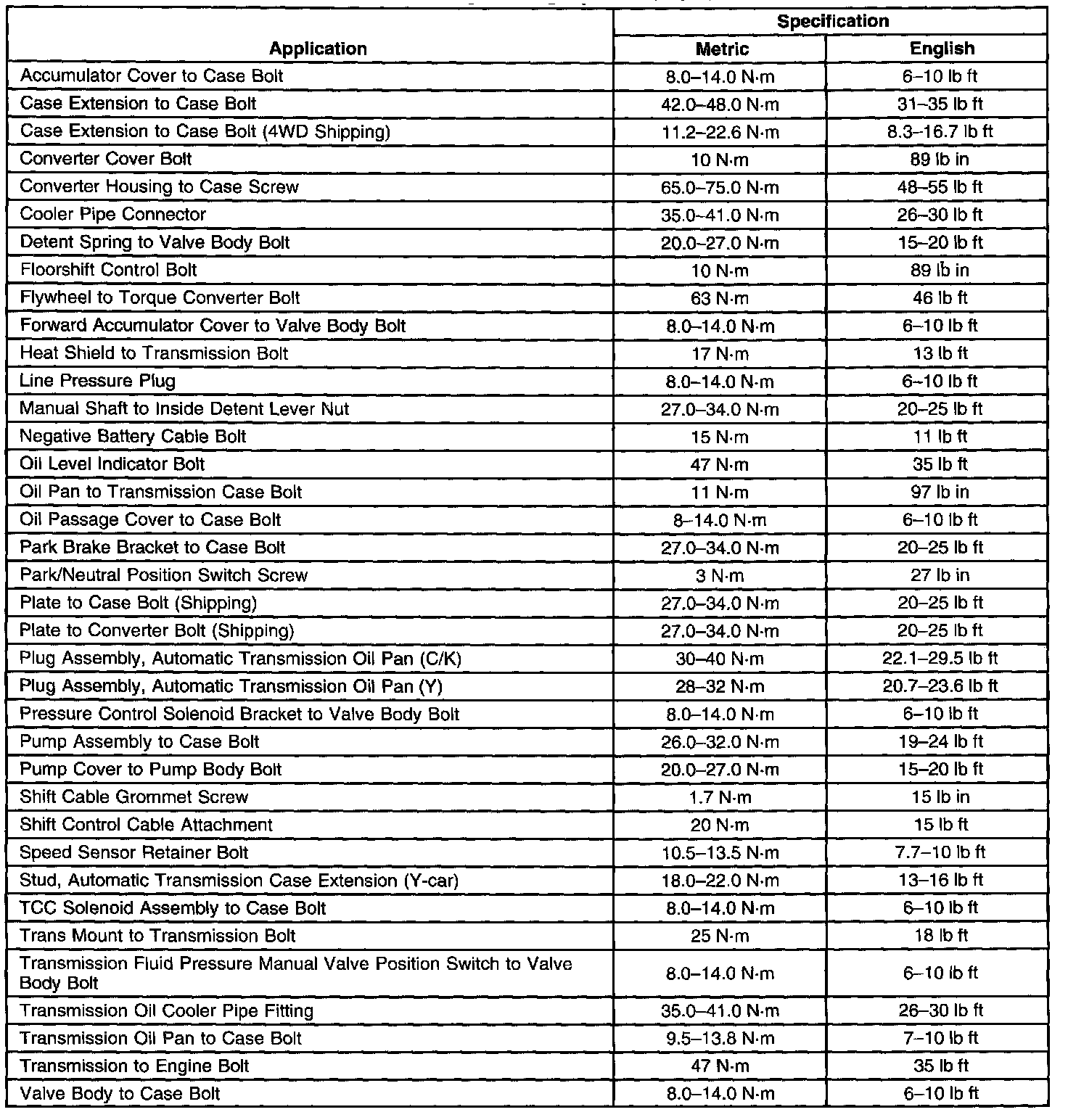

Tightening Torque Specifications




Tightening Torques

Flexplate To Crankshaft

Tighten To 74 ft. lb.




Tightening Sequence
