Oil Pressure Sensor: Service and Repair

ENGINE OIL PRESSURE SENSOR OR SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Raise the vehicle.
3. Disconnect the electrical connector from the engine oil pressure switch.

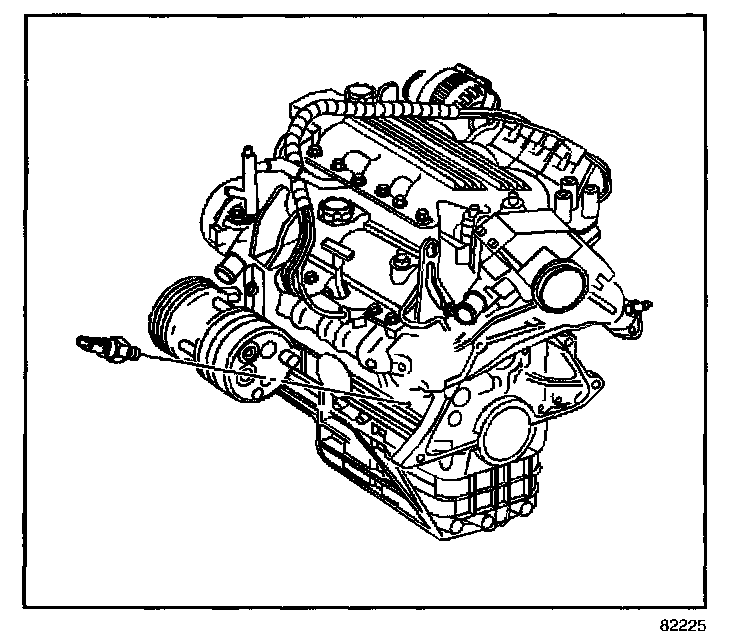

4. Remove the oil pressure switch.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the engine oil pressure switch.

Tighten
Tighten the switch to 16 N.m (12 lb ft)

2. Connect the electrical connector to the engine oil pressure switch.
3. Lower the vehicle.
