Power Window Switch Replacement - Left Front

REMOVAL PROCEDURE

IMPORTANT: The driver side power window switch is part of the master power window control assembly and cannot be serviced as an individual component. The entire master power window control assembly must be replaced as an assembly.

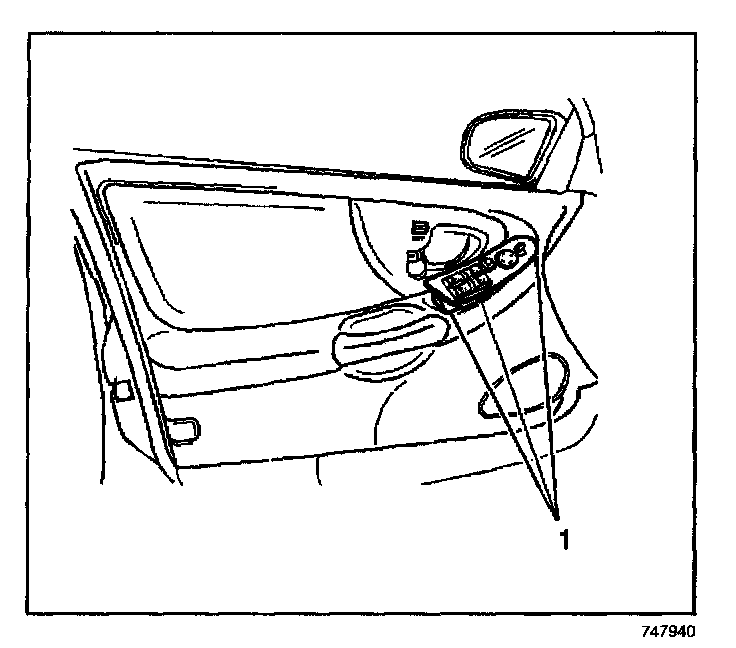

1. Using a small flat-bladed tool to release the power accessory switch panel retainers (1) from the door trim panel, push in and lift up Start at the front of the panel.

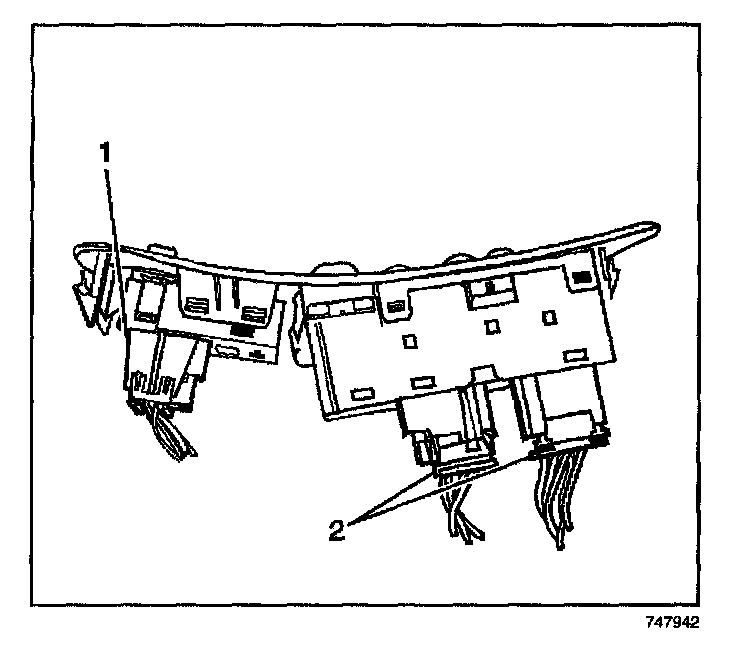

2. Disconnect the electrical connectors (2) from the power window switch.
3. Release the power window switch retainers in order to remove the switch from the panel.

INSTALLATION PROCEDURE




1. Install the power window switch to the accessory panel by pressing it into the retainer tabs until fully seated.
2. Connect the electrical connectors (2) to the power window switch.




3. Install the power accessory panel to the door trim panel by pressing until the retainers (1) are fully seated.
