Power Window Switch Replacement - Right Front

REMOVAL PROCEDURE

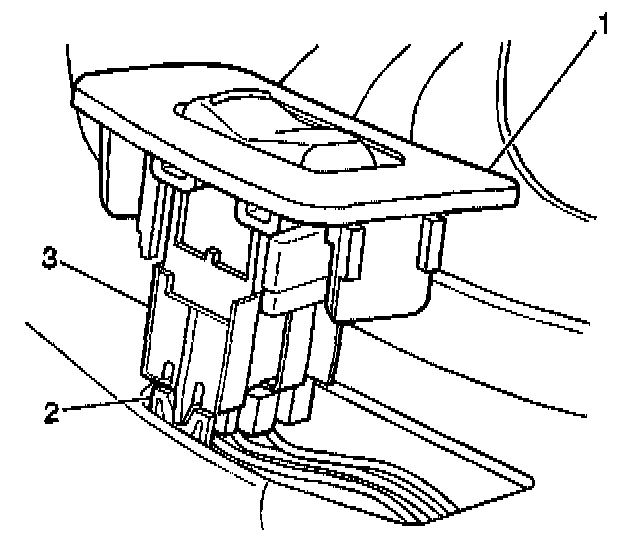

1. Use a flat bladed tool in order to remove the power window switch (3) from the door trim panel. Push in and lift up at the side of the switch.
2. Disconnect the electrical connector (2) from the power window switch (3).
3. Remove the power window switch bezel (1) from the power window switch (3) by releasing the retainers with the flat bladed tool.

INSTALLATION PROCEDURE




1. Install the bezel (1) to the power window switch (3) by pressing it into the retainers until fully seated.
2. Connect the electrical connector (2) to the power window switch (3).
3. Install the power window switch (3) to the door trim panel by pressing it until fully seated.
