Window Channel Replacement - Front Side Rear

REMOVAL PROCEDURE

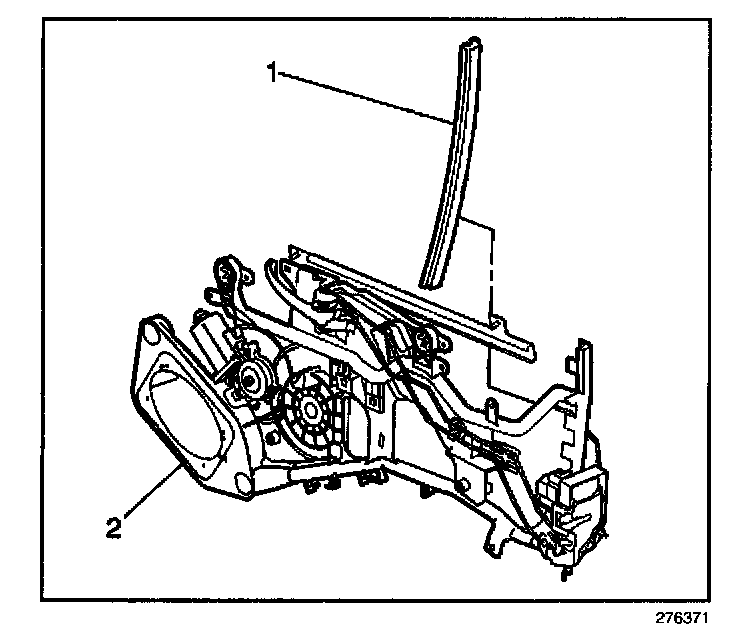

1. Remove the front door locking system module (2).
2. Disengage the front door window rear channel (1) from the retainer.

INSTALLATION PROCEDURE




1. Engage the front door window rear channel (1) to the retainer. Ensure that the locking tabs are fully engaged.
2. Install the front door locking system module.
