Control Module HVAC: Service and Repair
A/C COMPRESSOR CONTROL MODULE REPLACEMENTREMOVAL PROCEDURE

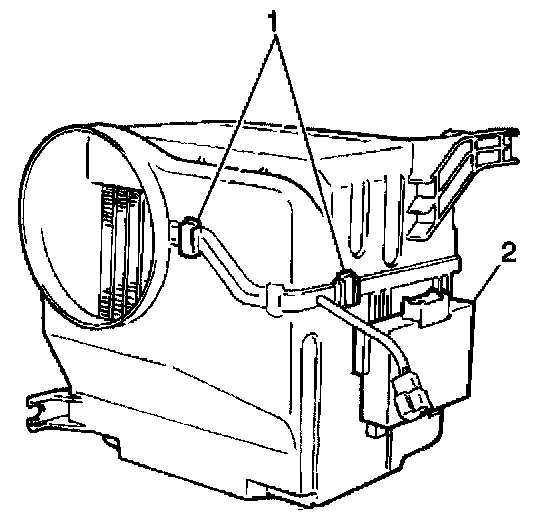

1. Remove the A/C compressor control module (2) from the evaporator case by performing the following actions:
^ Unsnap the module (2)
^ Slide the module (2) up.
2. Disconnect the electrical connector of the A/C compressor control module.
3. Remove the A/C compressor control module from the vehicle.
INSTALLATION PROCEDURE
1. Install the A/C compressor control module (2) to the vehicle.
2. Connect the electrical connector of the A/C compressor control module.
3. Install the A/C compressor control module to the evaporator case. Slide and snap the A/C compressor control module into place.
