Audible Warning Device Control Module: Service and Repair
REMOVAL PROCEDURE 1.
Disconnect the audio alarm module electrical connector.
2.

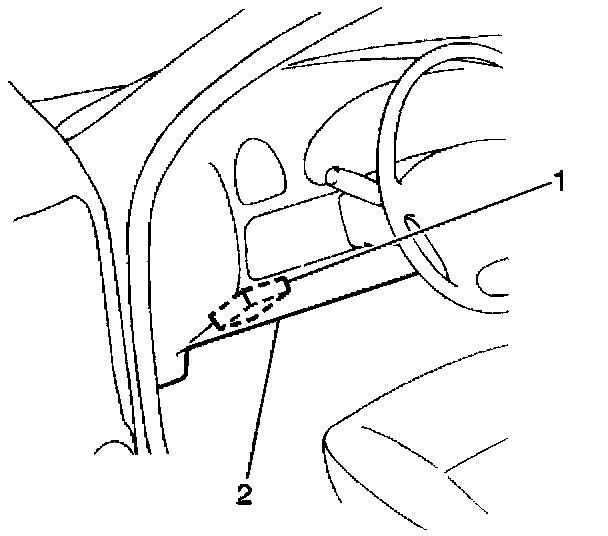

Slide the audio alarm module (1) off of the retaining bracket.
3.
Remove the audio alarm module (1) from the vehicle.
INSTALLATION PROCEDURE 1.
Slide the audio alarm module (1) onto the retaining bracket.
2.
Connect the audio alarm module electrical connector.
