Fuel Filter: Service and Repair

FUEL FILTER REPLACEMENT

REMOVAL PROCEDURE




1. Relieve the fuel pressure. Refer to Fuel Pressure Relief Procedure.
2. Raise vehicle. Refer to Lifting and Jacking the Vehicle.
3. Remove the fuel filter quick-connect fittings. Refer to Quick Connect Fitting(s) Service (Plastic Collar).
4. Remove the clamp bolt.

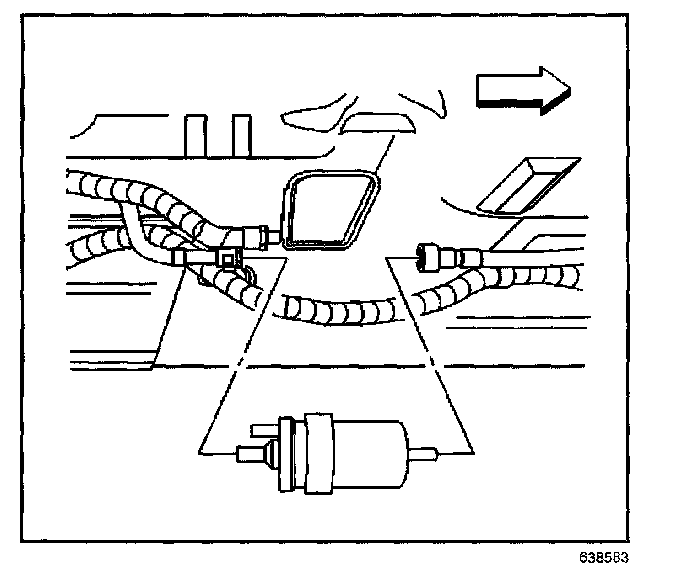

5. Remove the filter and the clamp from the fuel pipes.

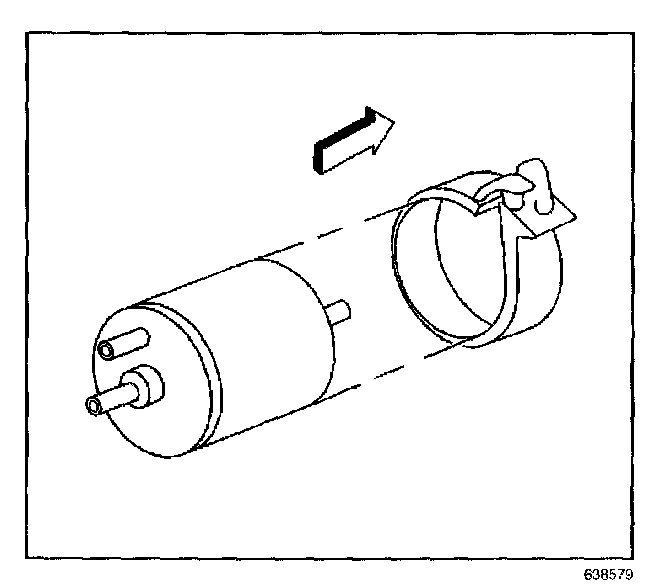

6. Remove the clamp from the filter.

INSTALLATION PROCEDURE

NOTE: Always re-attach the fuel lines and fuel filter with all original type fasteners and hardware.

Do not repair sections of fuel pipes.

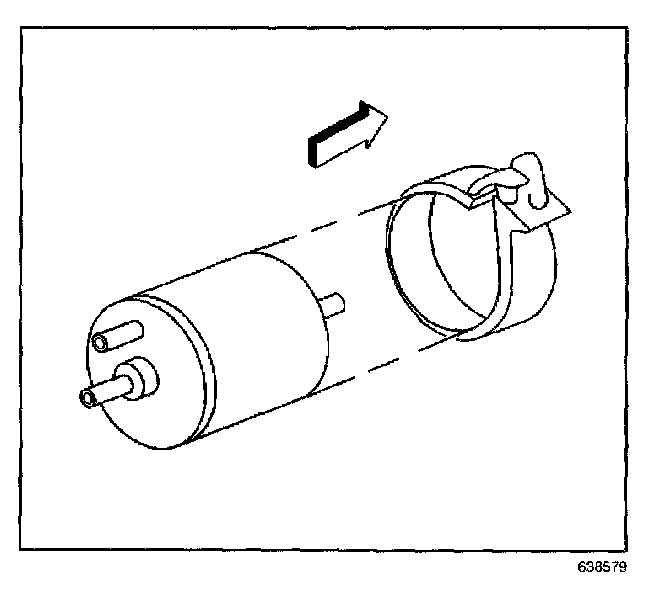

1. Install the clamp to the fuel filter.

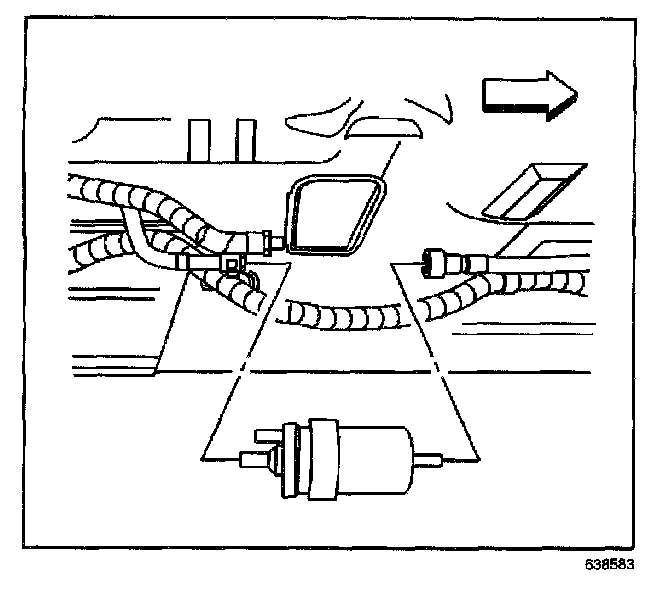

2. Install the filter and clamp to the fuel pipes.
3. Install the clamp bolt.




4. Install the fuel filter quick-connect fitting. Refer to Quick Connect Fitting(s) Service (Plastic Collar).
5. Connect the negative battery cable.
6. Lower vehicle.
7. Inspect for fuel leaks through the following steps.
7.1. Turn ON the ignition for 2 seconds.
7.2. Turn OFF the ignition for 10 seconds.
7.3. Turn ON the ignition.
7.4. Check for fuel leaks.
