Cylinder Head Specifications

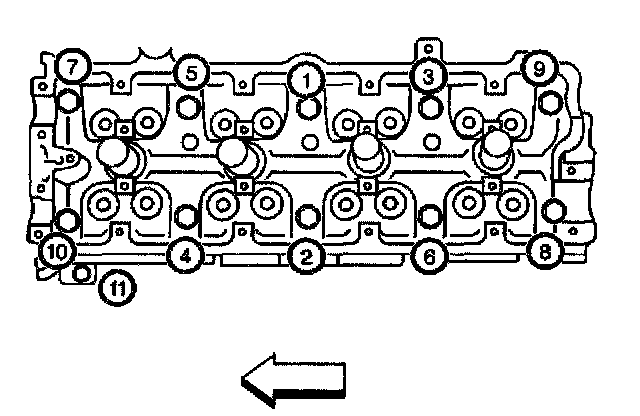

Tighten the cylinder head bolts (1-10).
Tighten the cylinder head bolts (1-10) in the sequence shown to 53 Nm (39 ft. lbs.).
1. Tighten the cylinder head bolts (1-10).
Tighten the cylinder head bolts (1-10) in the sequence shown to 84 Nm (61 ft. lbs.).
2. Tighten the cylinder head bolts (1-10).
Tighten the cylinder head bolts (1-10) in the sequence shown to 105 Nm (76 ft. lbs.) as shown.
3. Tighten the M 6 cylinder head bolt (11).
Tighten the cylinder head bolt (11) to 11 Nm (97 inch lbs.) as shown.
