Engine

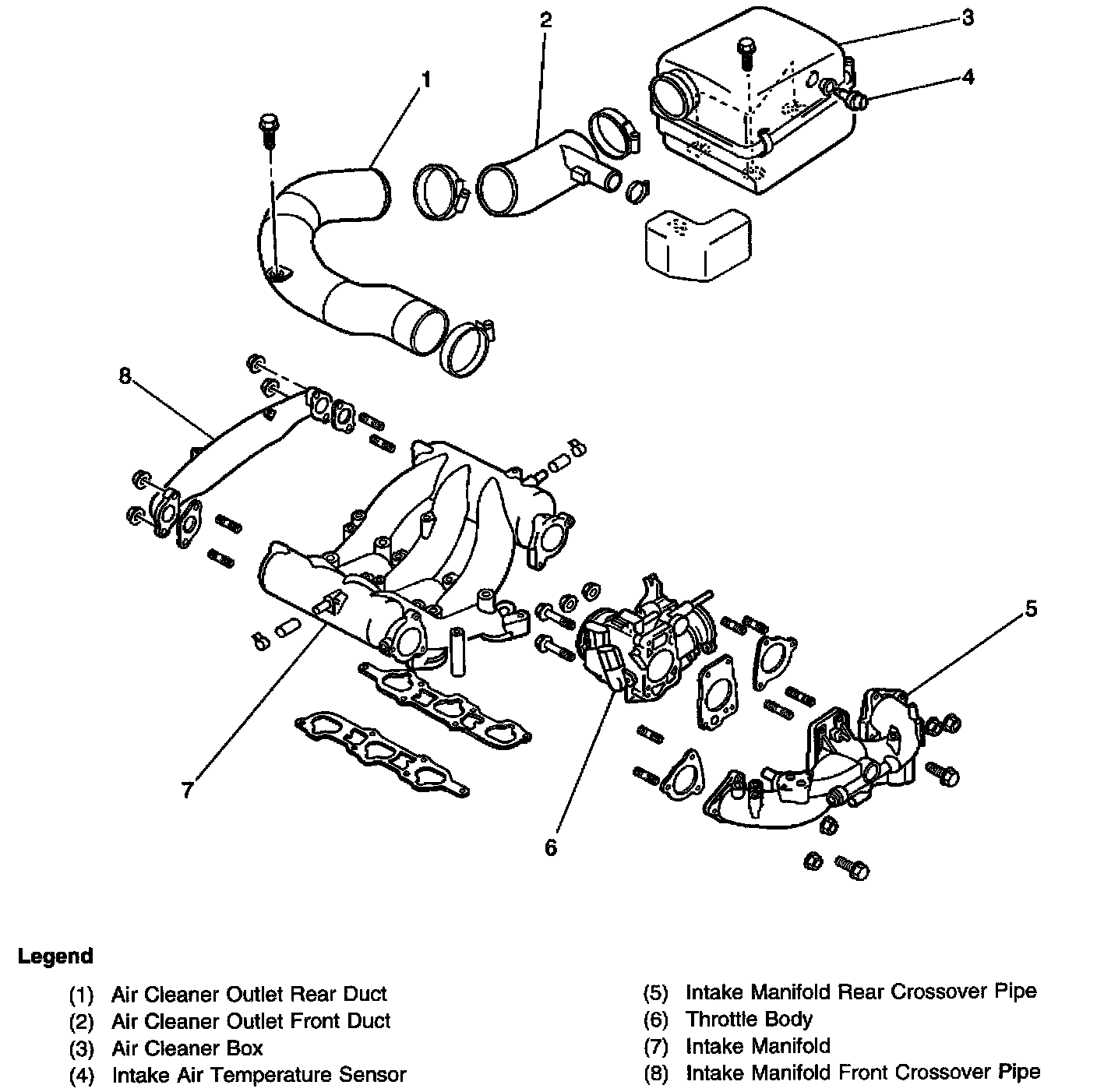

Throttle Body and Intake Manifold

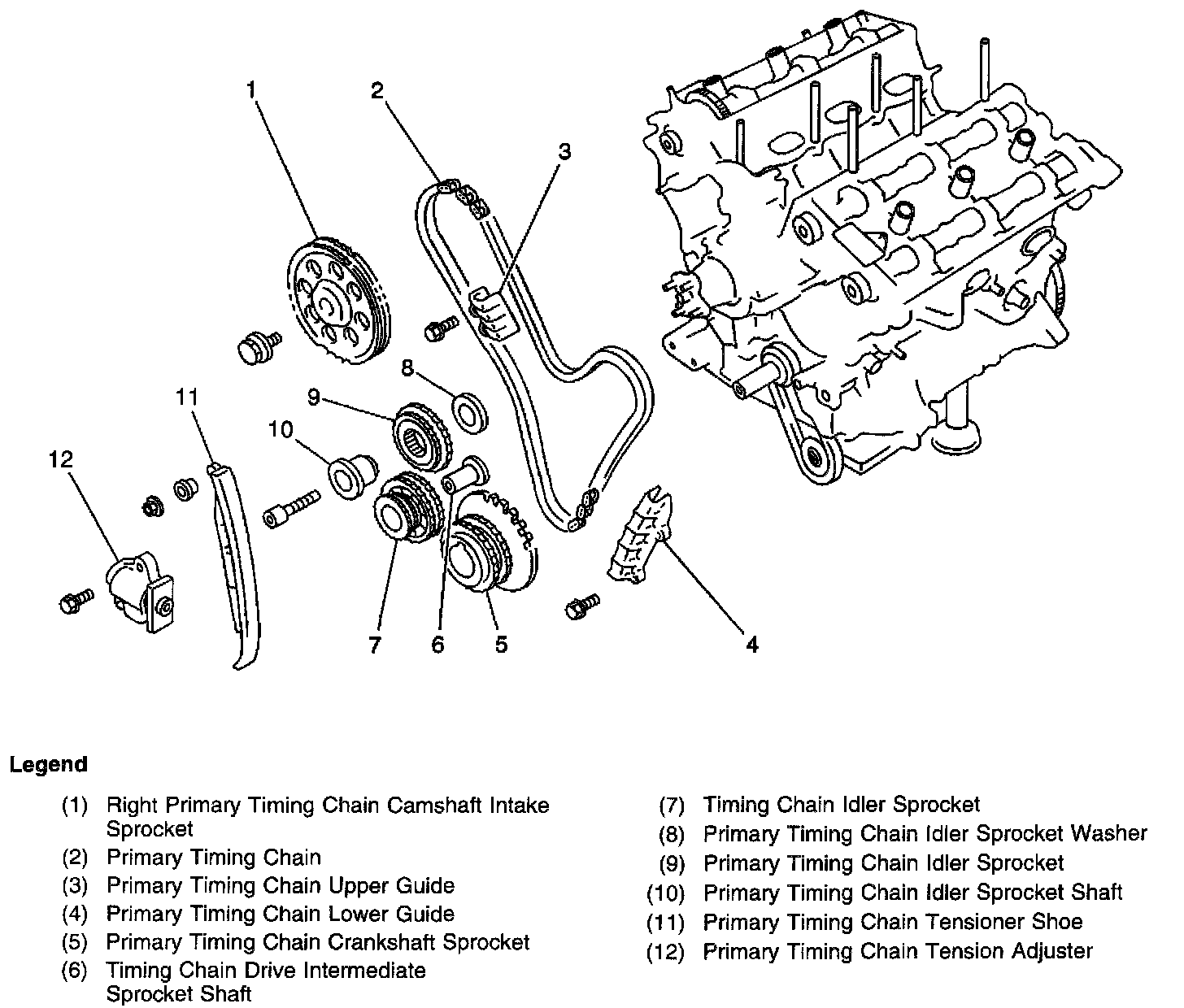

Primary Timing Chain and Tensioner

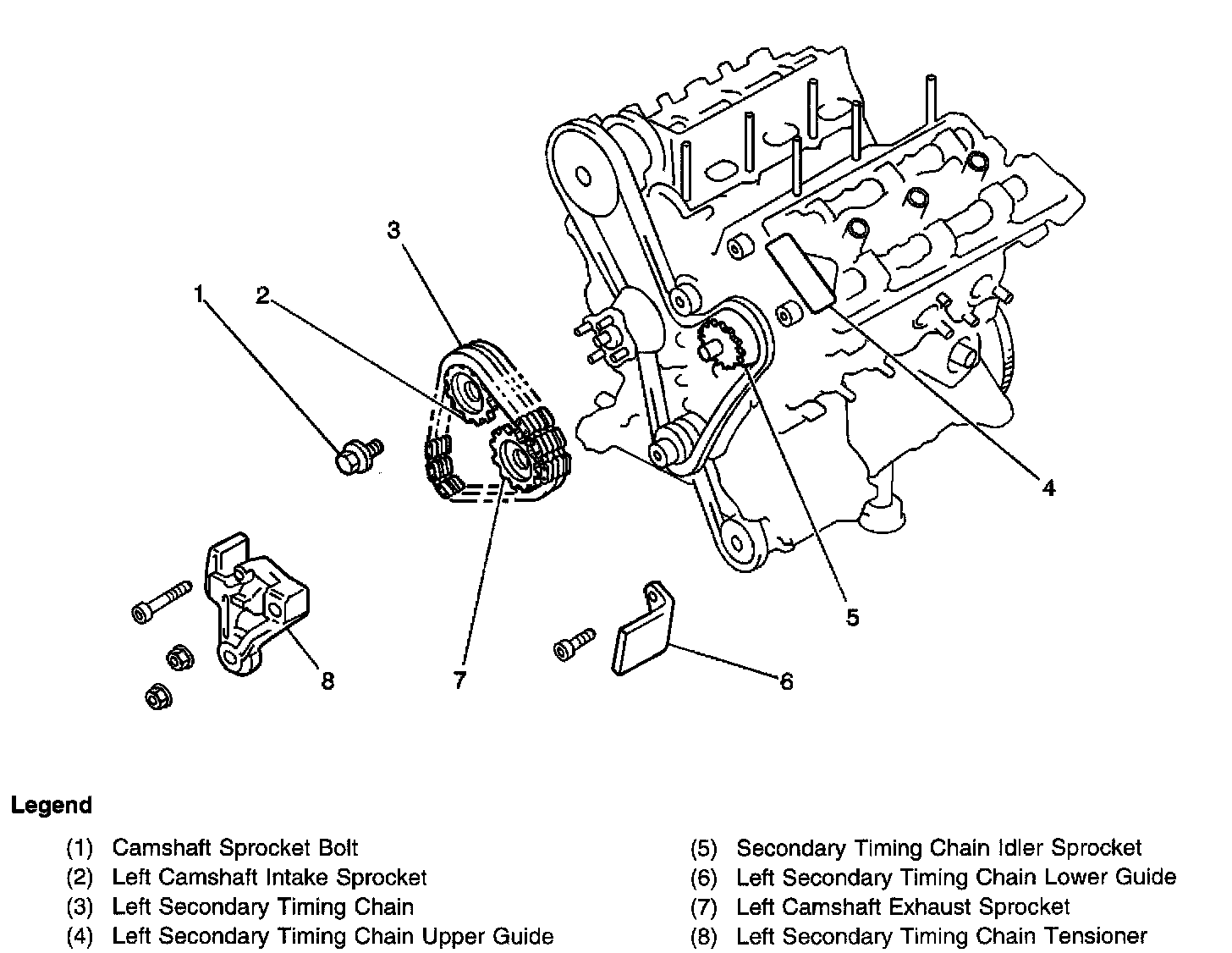

Left Secondary Timing Chain and Tensioner

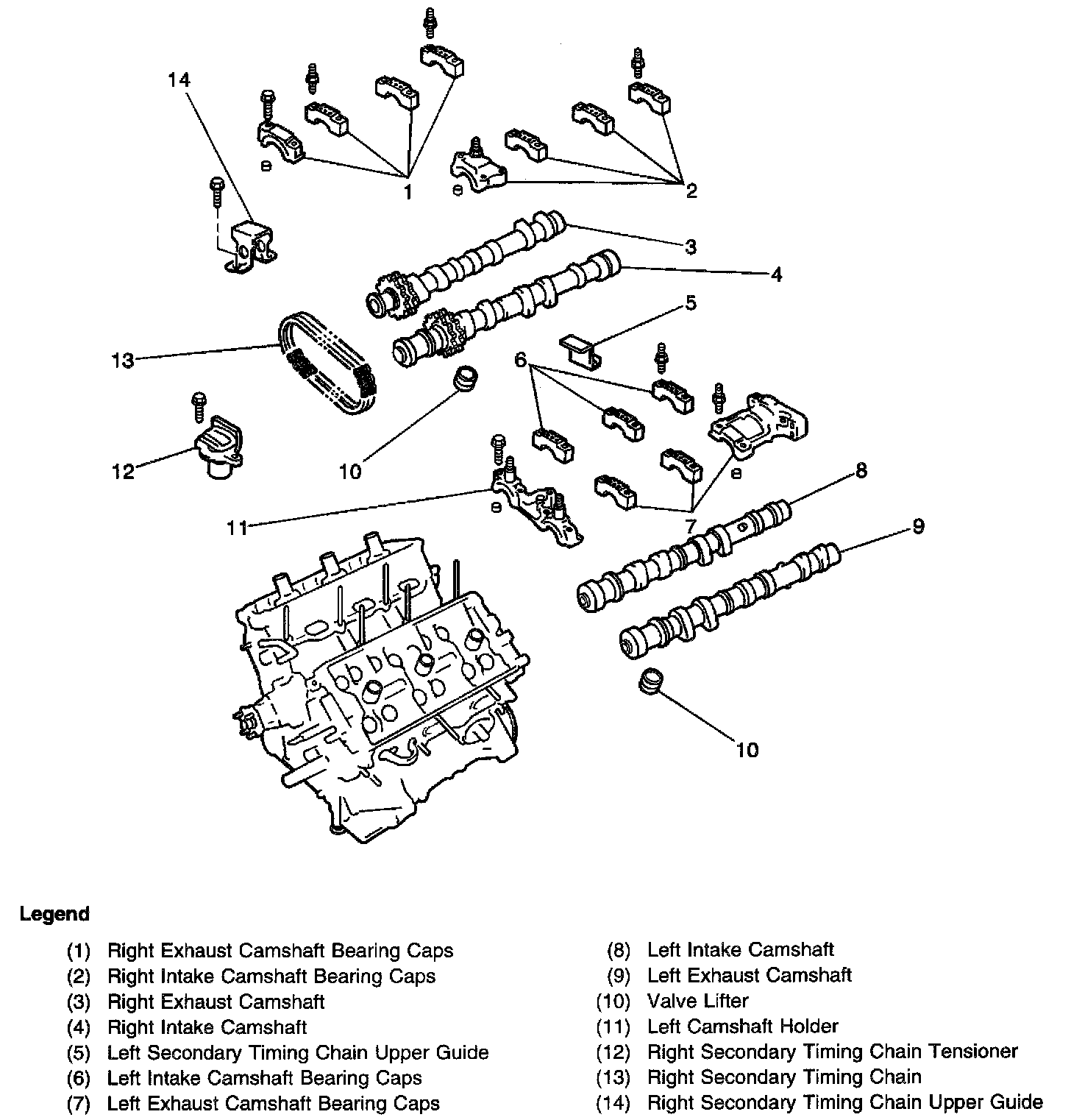

Camshafts and Lifters

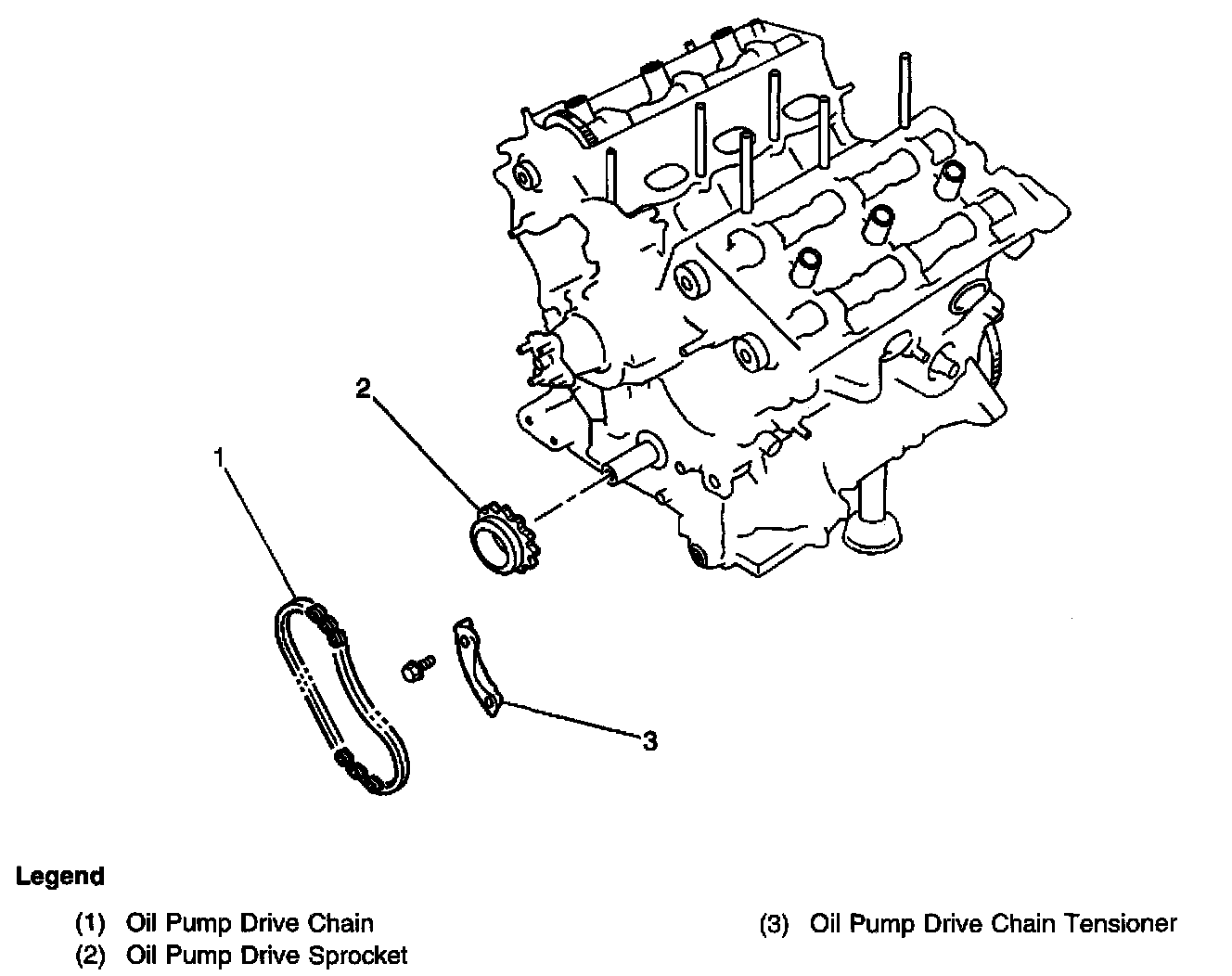

Oil Pump Drive Chain and Chain Tensioner

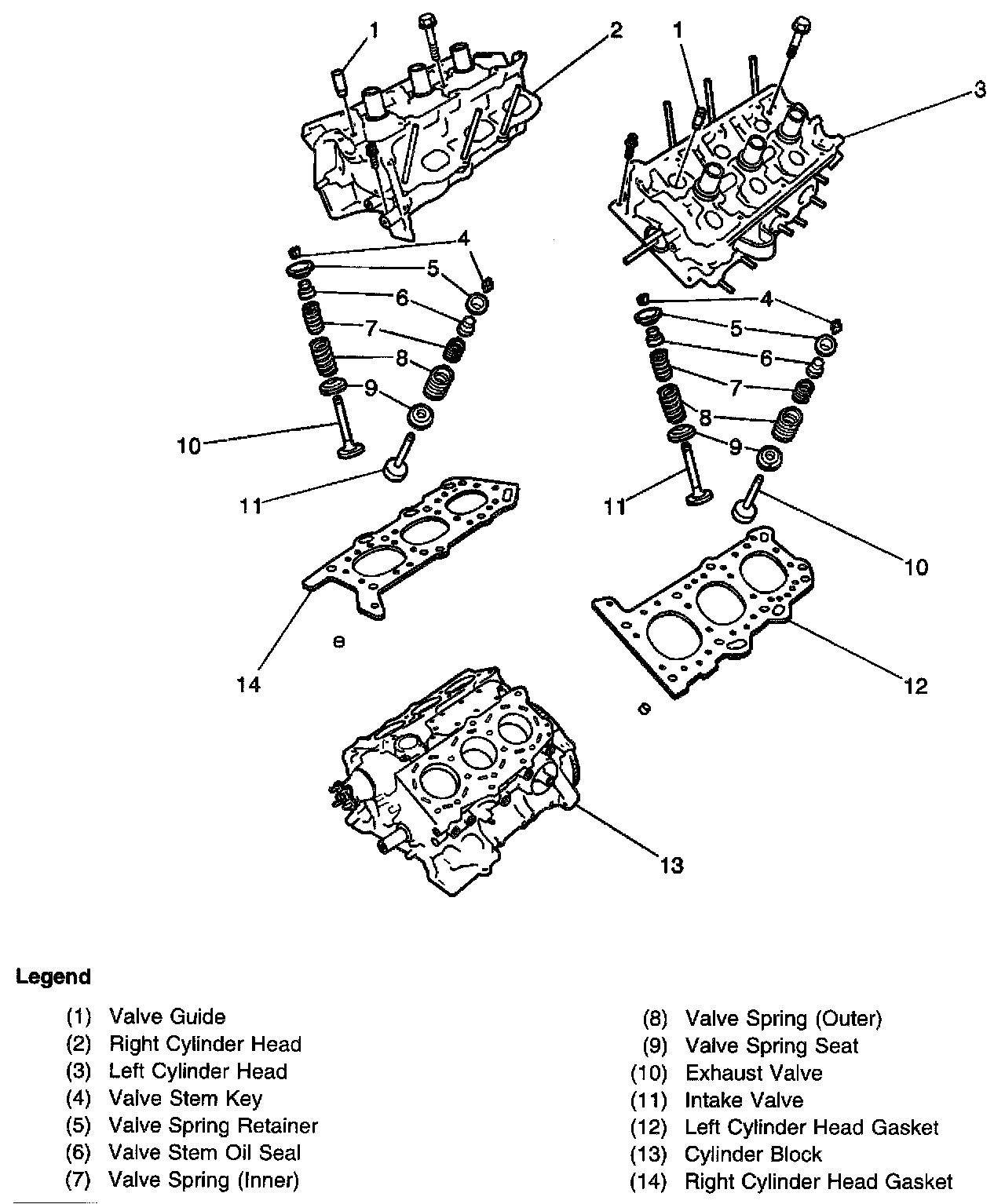

Valves and Cylinder Heads

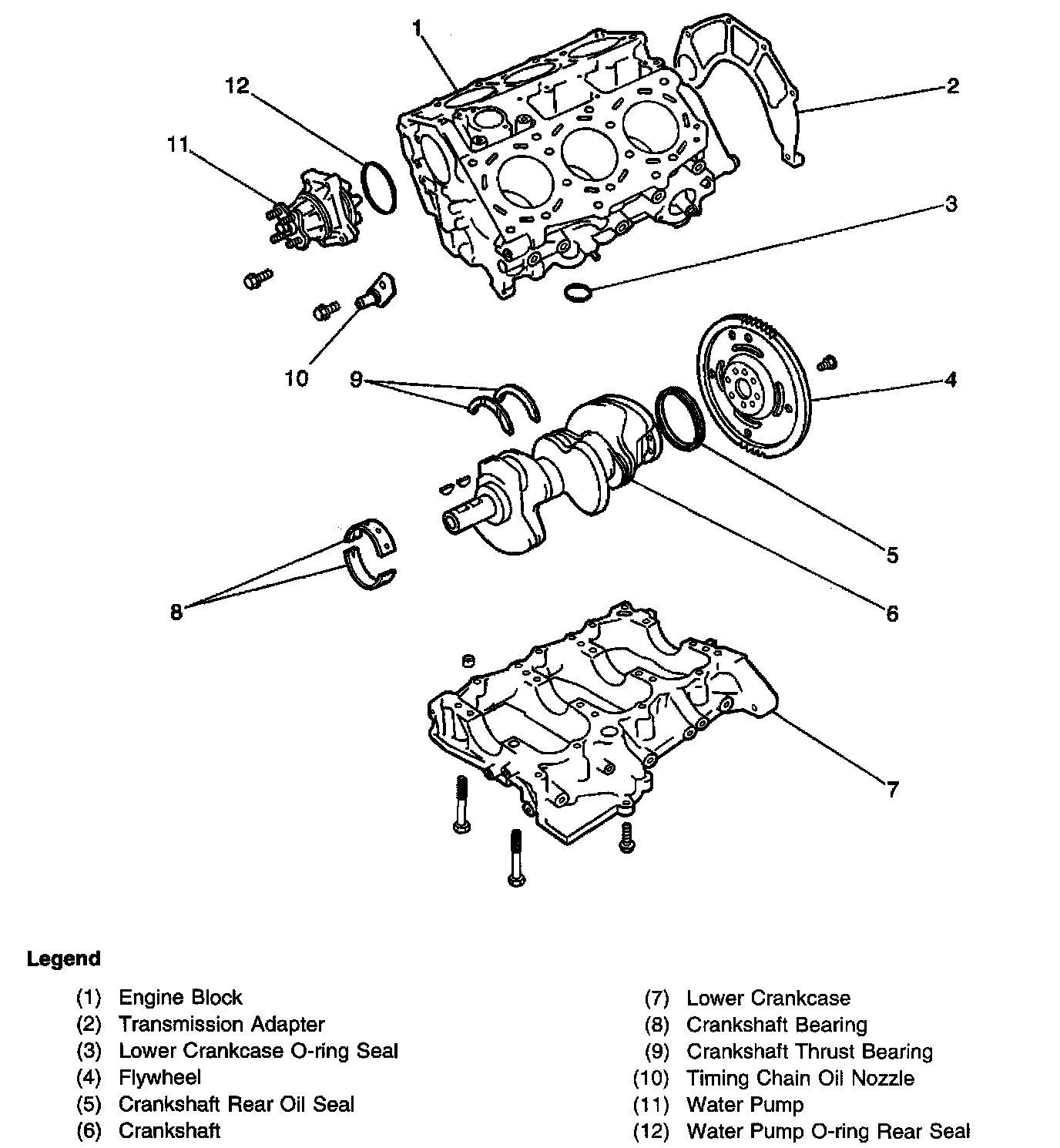

Crankshaft Bearings, Crankshaft and Engine Block
