Radiator Hose Replacement -Inlet

Removal Procedure

Caution: Refer to Radiator Cap Removal Caution in Service Precautions.





1. Partially drain the engine coolant.

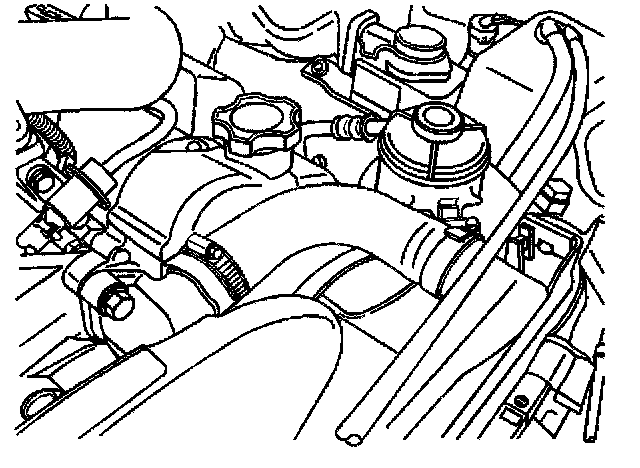

2. Loosen and reposition the hose clamps at the radiator outlet, and the thermostat housing.





3. Remove the radiator outlet hose.

Installation Procedure
1. Position new hose clamps on each end of the new radiator outlet hose.
2. Install the new radiator outlet hose to the thermostat housing and to the radiator.
3. Secure the hose with the hose clamps.
4. Fill the radiator with an approved coolant.
