Service Port HVAC: Service and Repair
SERVICE PORTS REPLACEMENTTOOLS REQUIRED
^ J 39037 Octagon Socket
^ J 39400-A Halogen Leak Detector

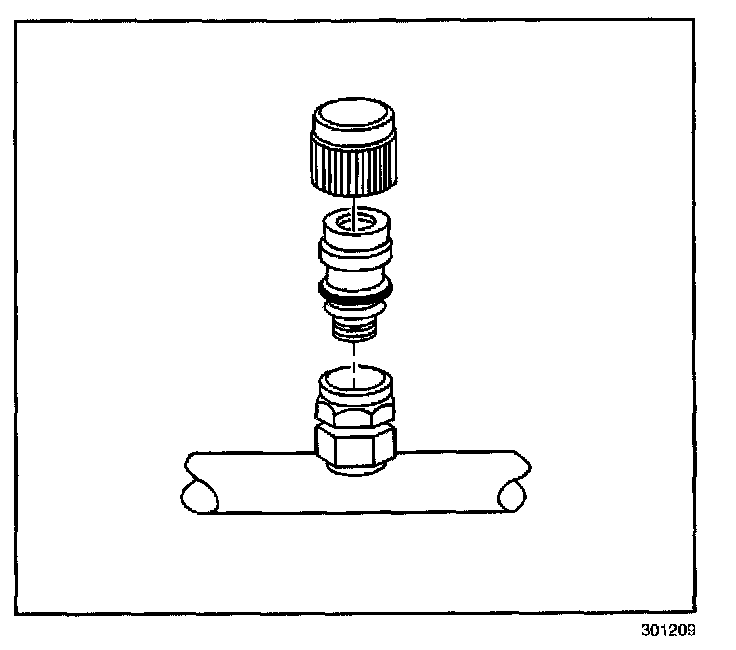

REMOVAL PROCEDURE
1. Remove the service port cap.
2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
3. Use the J 39037 to remove the service port.

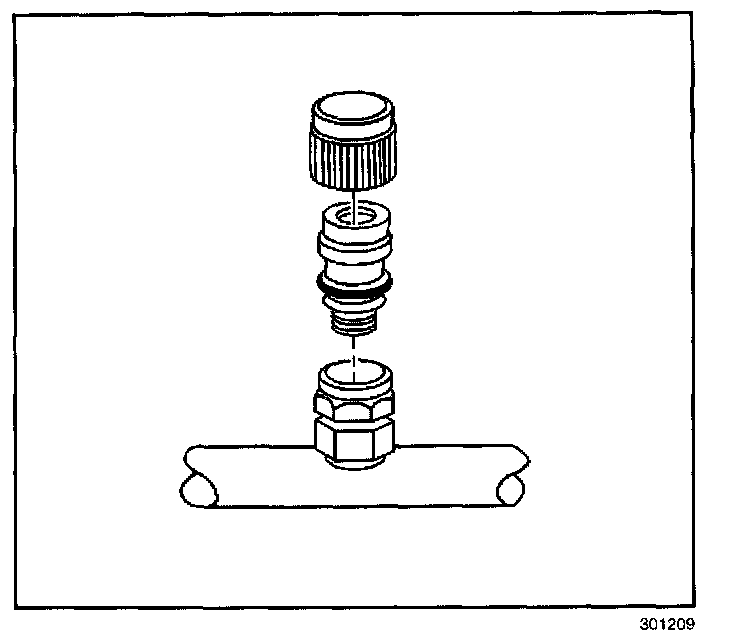

INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the service port.
Tighten
Tighten the service port to 11 N.m (98 lb in).
2. Evacuate and recharge the refrigerant. Refer to Refrigerant Recovery and Recharging.
3. Leak test the fittings of the component using J 39400-A.
4. Install the service port cap.
Tighten the cap 1/4-1/2 turn after the seal washer contacts to access fitting.
