Electronic Column Lock Module - Assemble

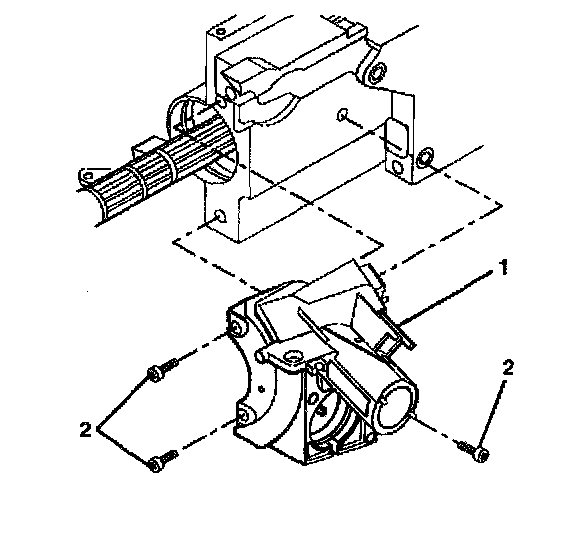

1. Install the electronic lock module assembly (1).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the three pan head tapping screws (2) into the electronic lock module assembly.
- Tighten the screws to 1.5 Nm (13 inch lbs.).

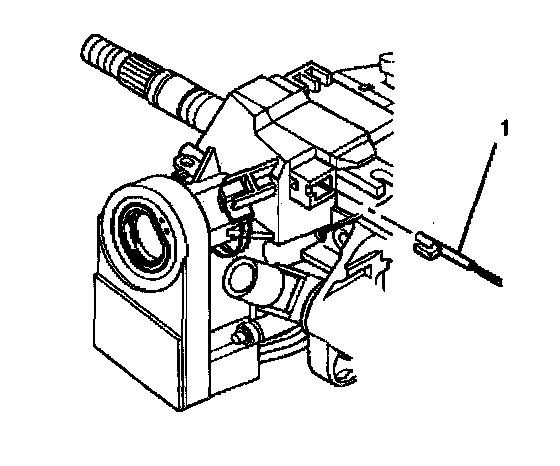

3. Install the park lock cable assembly (1) into the electronic lock module assembly.





4. Install the ignition and key alarm switch assembly (3) onto the electronic lock module assembly (2) and secure by using the 2 tapping screws.
- Tighten the screws to 4.7 Nm (42 inch lbs.).

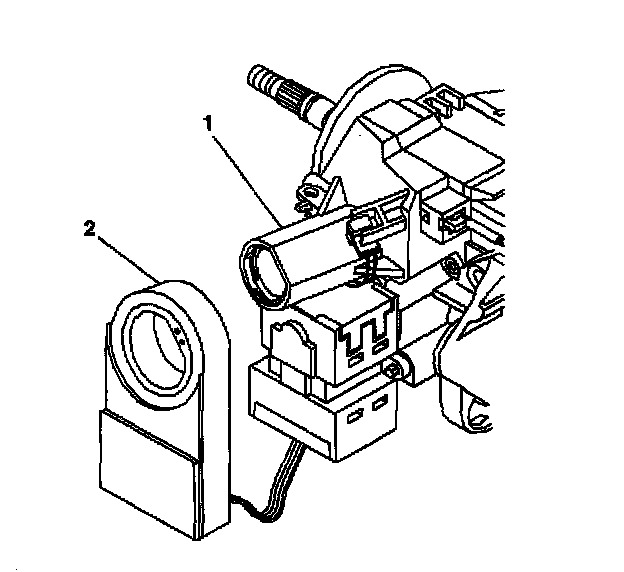

5. Slide the PASSKEYS (R) III (2) onto the electronic lock module assembly (1).
6. Install the steering column tilt head assembly. Refer to Steering Column Tilt Head Housing-Assemble-Off Vehicle.
