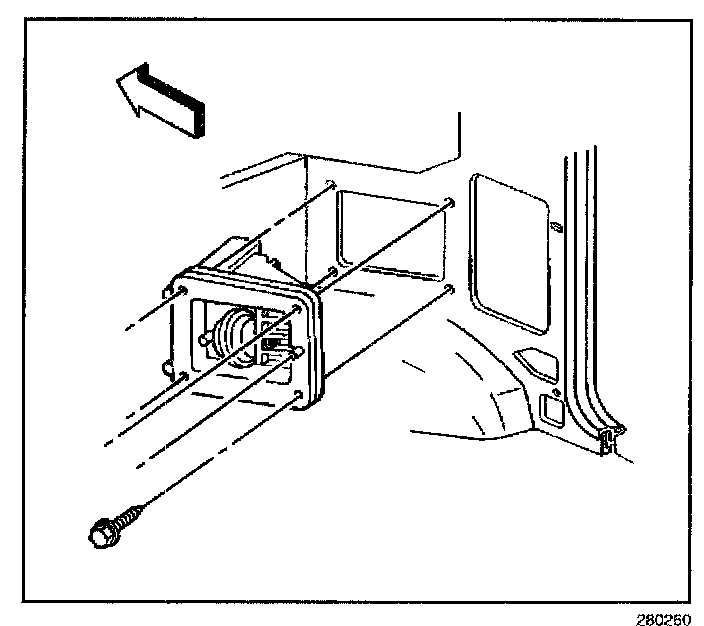

Recirculation Door Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel from the vehicle.
2. Remove the recirculation door bolts.
3. Remove the recirculation actuator.
4. Remove the recirculation door assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the recirculation door assembly to the vehicle.
2. Install the recirculation actuator.

NOTE: Refer to Fastener Notice

3. Install the recirculation door assembly bolts to the vehicle.

Tighten
Tighten the bolts to 4 N.m (35 lb in).
