Ignition Relay: Testing and Inspection

CIRCUIT DESCRIPTION
The ignition relay supplies ignition voltage to the following compartments:
^ Fuel injectors
^ Ignition coils
^ Powertrain control module (PCM)
^ Alternator/Generator.

DIAGNOSTIC AIDS
If the IGN relay fails to close:
^ Scan data will be available.
^ Vehicle will crank, no start.
^ Dash indicator lights will illuminate.

TEST DESCRIPTION

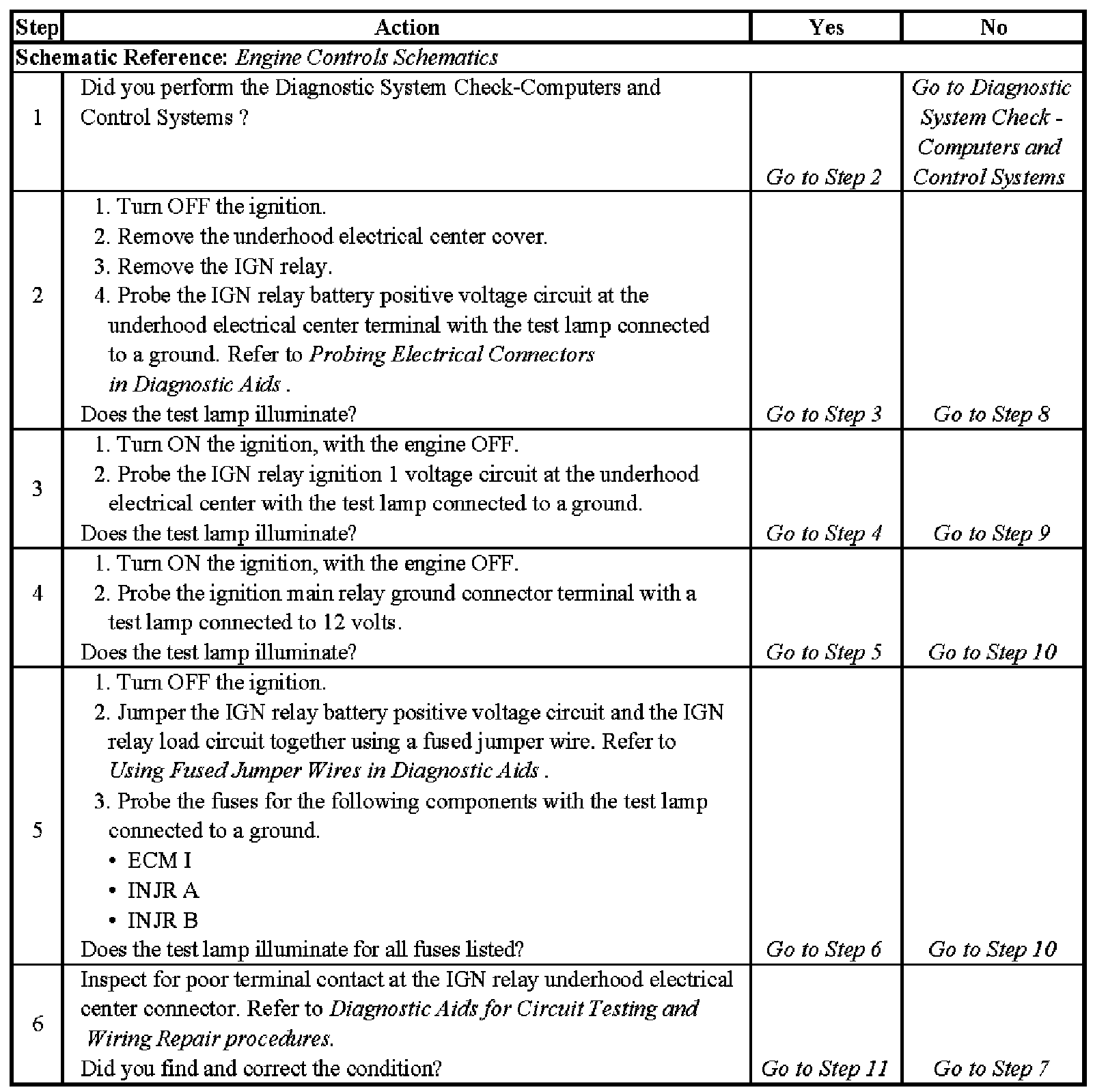

Ignition Relay Diagnosis - Steps 1-6:

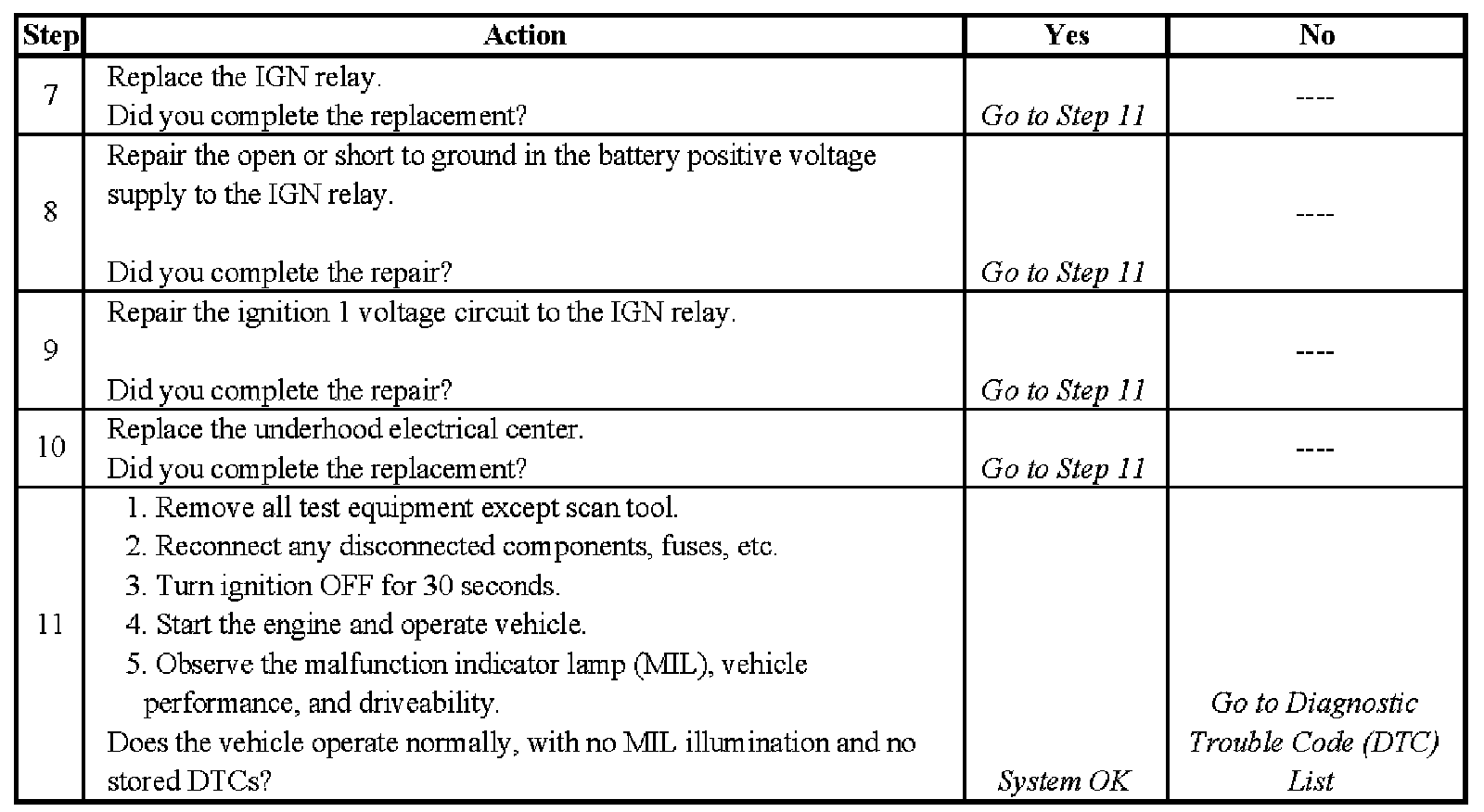

Ignition Relay Diagnosis - Steps 7-11:

The numbers below refer to the step numbers on the diagnostic table.
4. This step is testing the relay ground circuit.
5. This step isolates the circuit from the IGN relay. All of the circuits at the relay are good if the test lamp illuminates.
9. The open circuit will be between the splice and the IGN relay.
10. Remove the underhood electrical center cover and inspect the circuits that are supplied a voltage by the IGN relay.
