Frame Contact Hoist
FRONT HOIST PADS IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

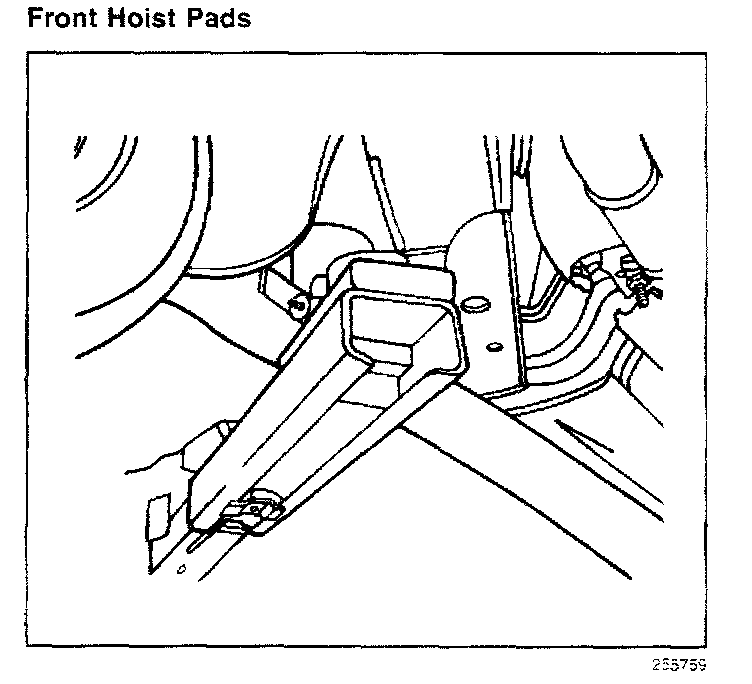

Front Hoist Pads:
Position the front hoist pads frame contact as shown.
REAR HOIST PADS IMPORTANT: The rear hoist pads must not contact the body rocker panels or the floor pan.

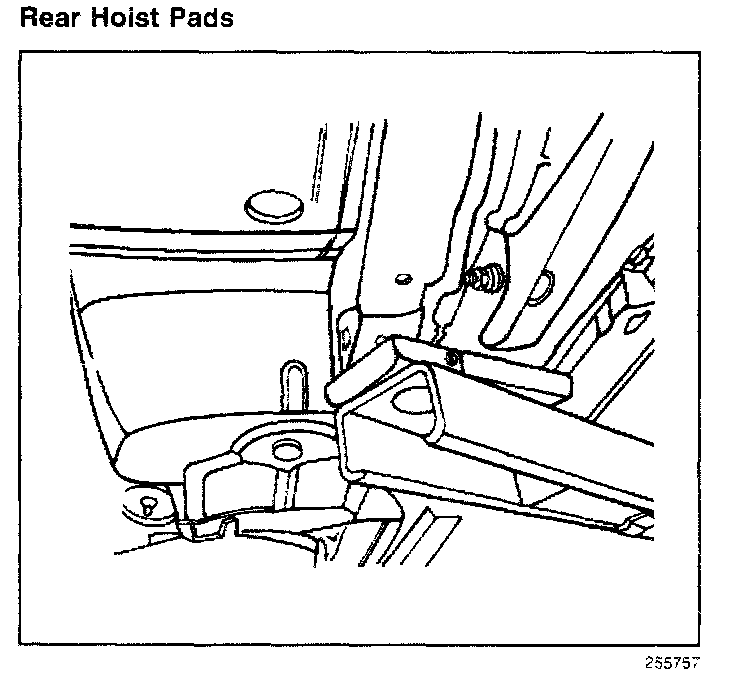

Rear Hoist Pads:
Position the rear hoist pads body frame contact as shown.
